This excerpt from Hoerner confirms what the Long
Ranger (Jeff?) was illustrating with his hand drawn sketches.

Namely; if the external diffuser is over driven you
will have higher external drag. Hoerner has not yet mentioned
the term "external diffusion" but he does indeed deal with
it. The paragraph and figure 12 were in another part of the
book. Not in the section on ducted rads.

The illustration is pretty self explanatory.
The over driven part is the left side of the curve.
The drag jumps up 50% over that of a solid body!

The bottom line is; as Jeff says, we need some data on
the flow rates and heat transfer capabilties of
different radiators.

IMHO lacking that data we need flaps on both the inlet
and the outlet.

PL

"Streamline Cowling.

The engine nacelles and cowlings investigated in (10),
represent modest aircraft installations as around 1937.
Cowlings and nacelles have been developed since, so that
they are suitable for higher speeds, having higher
critical Mach numbers (l0, e) and (12,c).

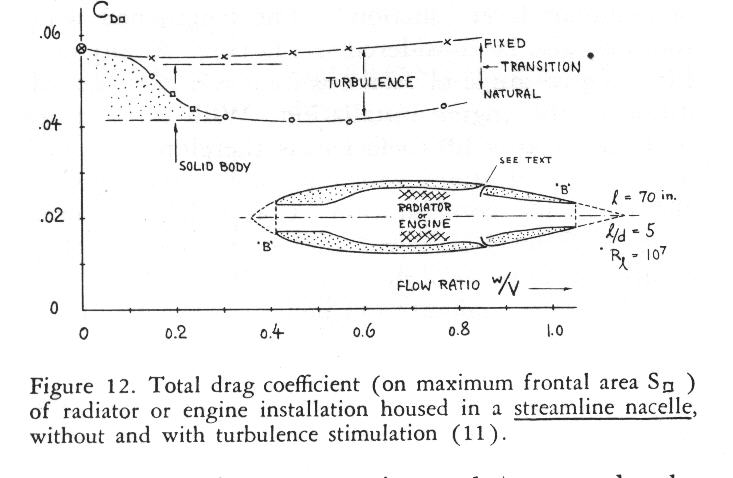

The arrangement in figure 12 can be considered as an
extreme example, with the powerplant (whatever type it
may be) assumed to be located near the maximum diameter
of the streamline nacelle or fuselage shape. After
subtracting the internal drag (which is not at issue in
the investigation quoted), the external drag is
obtained.  Both the streamline body without openings,
and the ducted body at flow ratios (based on frontal
area of the body) between 0.3 and 0.6, have some laminar
flow along the forebody. The drag is equally increased
in both conditions, after fixing transition near the
nose by means of a carborundum strip.

At any rate, the external or parasite drag caused by
inlet and outlet of the cooling flow, is practically
reduced to zero in these conditions.

However, at small rates of flow and without stimulation
of turbulence, the ducted configuration shows higher
drag coefficients than the solid body. The inlet opening
is evidently "over-flowing" in this case; and the flow
around the rim of the opening produces boundary layer
turbulence in a manner similar to that as caused by the
carborundum strip. - As an alternative for the
discharge through the rear end of the body, an annular
outlet slot (at 63% of the body length) has also been
investigated (see in figure 12). The external drag of
this configuration is somewhat higher than with the tail
outlet (Delta C sub da is between 0.005 and 0.010).

With either outlet, the external drag coefficient (0.04
to 0. 06) is considerably smaller than those of the
old-type nacelle installations quoted later, in Chapter
XIII, (having total drag coefficients between 0.15 and 0.
21)."
