Romulo,

Please print this on your printer, mark it up showing dimensions
and position of engine and then scan it in and send it back.


Paul Lamar

Romulo Augusto wrote:

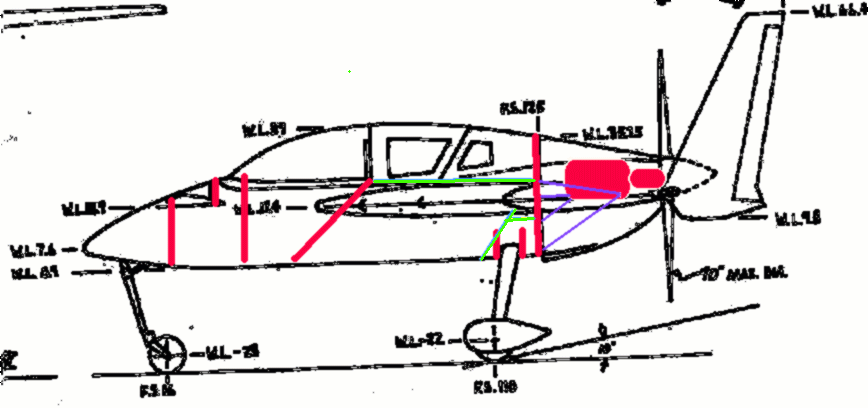

I draw the bulkheads, TFV, rotary engine and the engine mount over the draw. I
hope this will help.

Romulo

OK Romulo, I will draw something up to scale, calculate the loads
for a 350 pound engine/PSRU/prop and upload it tomorrow.

You will need to add several layers of tape along the inside of the
fueslage down near the bottom to accomodate the rubber motor
mounts in the firewall. I assume the firewall is at least 5/8 of
an inch thick or you can add several layers of cloth to build it
up in the area of the rubber bushings to 5/8th to 3/4 of an
inch in thickness.

Paul Lamar
