Perry Mick wrote:

Bill and Paul:

Here are the chord numbers for the Hartzel copy.  I used Bill's
airfoils with only the following modifications:  at station
30 changed from 16-209 to 16-208, at station 33 changed from

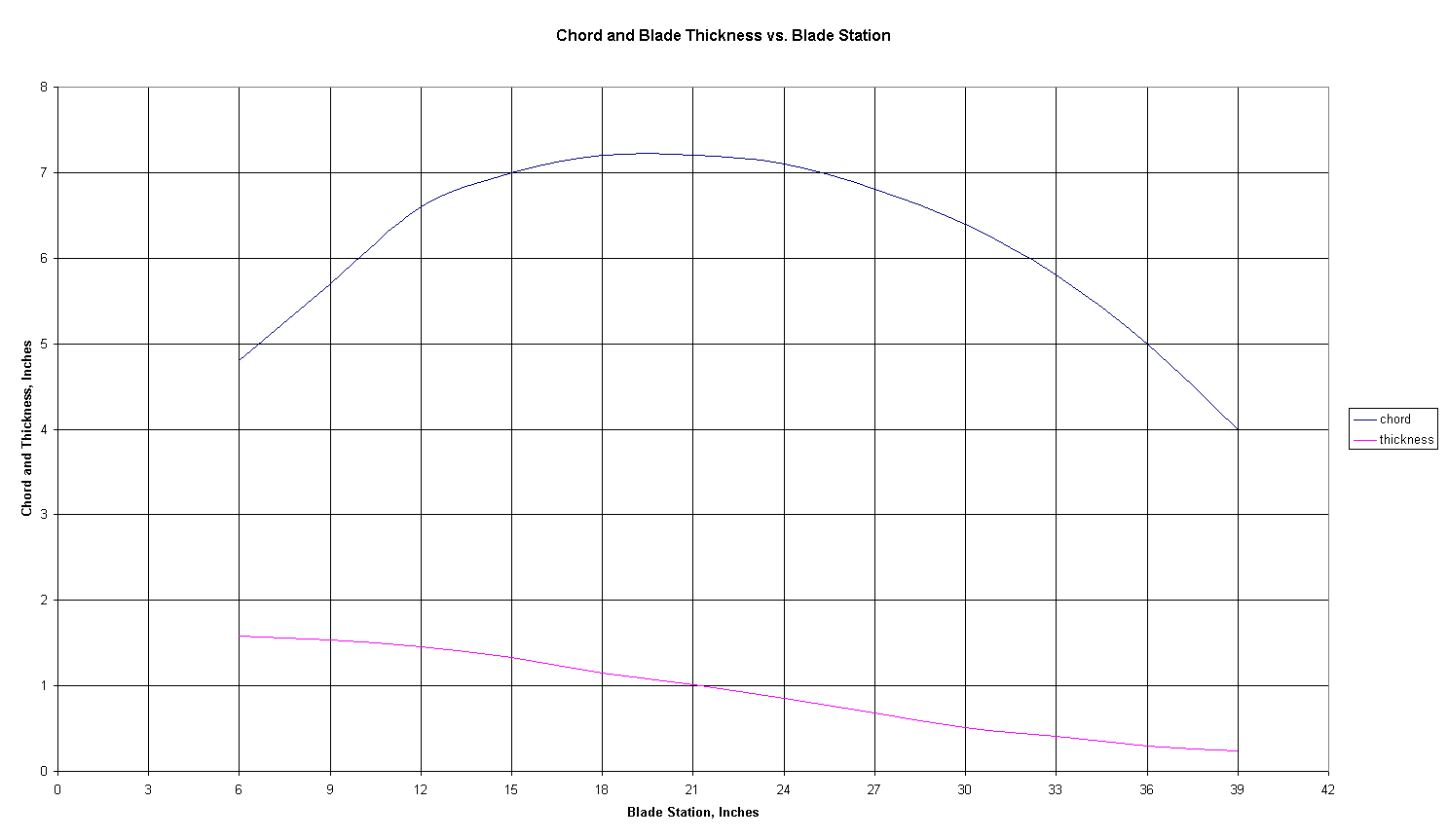

16-208 to 16-207.  This made the plot of blade thickness vs.
blade station smoother (took out a little bump).

r       c       af      th %    th in.
6       4.8     16-333  33      1.584
9       5.7     16-327  27      1.539
12      6.6     16-322  22      1.452
15      7       16-319  19      1.33
18      7.2     16-316  16      1.152
21      7.2     16-314  14      1.008
24      7.1     16-312  12      0.852
27      6.8     16-310  10      0.68
30      6.4     16-208  8       0.512
33      5.8     16-207  7       0.406
36      5       16-206  6       0.3
39      4       16-206  6       0.24

I have all the airfoils entered in VCADD, scaled for chord.
Once I have them rotated I'm going to DXF export, and a guy
here at work is going to do some Solidworks magic to make
it 3D for Joa.
