Ken Powell wrote:

Question for Jerry Bass:
Do you have drawings or pictures of how you added the thrust bearing
to the input shaft of your Ross 2.85 redrive?  Did you perform the
work or did you have it done?  There are several guys on the list
who would like to get this done.

Thanks,
Ken Powell

"Bass, Jerry" wrote:

I designed and built a Hat section to bolt to the Planet carrier.  I would
get the parts made and sell as a kit if anyone wants one.  I would like to
look at it before passing judgement at 10 to 15 hours(like Tracy does). I
would like to use Tracy's thrust bearing if I can fit it in too.  Mine is
inside the mfg's specifications as it runs between the sun and planets.  It
also contains  and reduces the gear thrust on the prop bearings from the
gear tooth angle.

I added a gasket between the drive to give it clearance between the input
shaft and the eccentric shaft.  I tried to send this drawing before and it
did not go through the firewall.

Jerry Bass

Very good idea Jerry. I think it will work fine. Could work with
the 2.17:1 psru  if a minor mod or two were made.

A bit of explanation is in order.
In the 2.85:1 psru, like Jerry has, power is taken from the planet
carrier instead of the ring gear. This is done by replacing the four pinion shafts
with bolts and using these bolts to fasten the planet carrier to the out
put shaft (prop shaft) flange or bulkhead. Jerry has made these bolts a bit longer

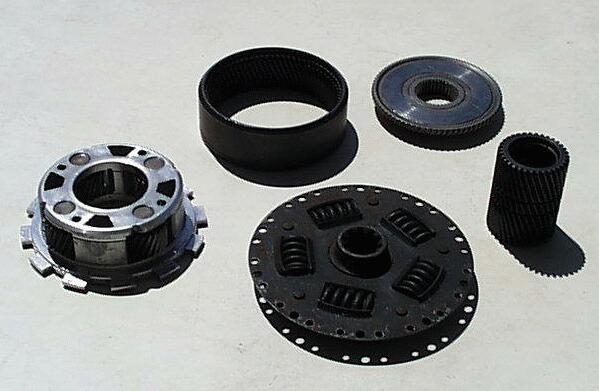

and bolted the hat section to the planet carrier. Here is a picture of the parts
in question. The planet carrier is the part on the left. the out put shaft
flange is in the upper right. The ring gear is locked to the housing in the
2.85:1 psru.

Paul Lamar
