Chuck wrote:
I finally got my new RWS RD-1A drive installed. Flew it
yesterday for the
first time. It seems quieter than the Ross, thanks to the
rubber dampeners.
At cruise, prop noise is loudest, followed by wind noise,
followed by engine
noise in descending order of loudness. I like it! Thanks, Tracy.
Chuck Dunlap
Is that black anodize I see Tracy or did Chuck paint it black? :-)>
Looks good Chuck.
Paul Lamar

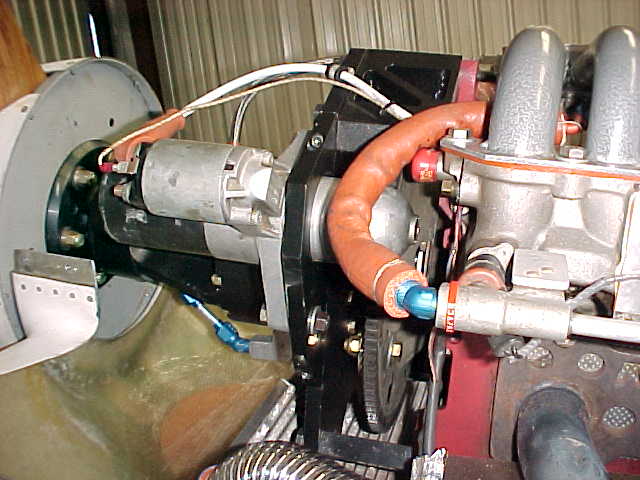

Chuck please tell us how you moved the starter over to the
side of the engine
on Tracy's psru plate. I just noticed that. got a picture
from the other
side?
Paul Lamar
I had to saw off part of the bottom of the plate to get clearance from my
radiator. The starter definitely would not fit down there. I then took a
piece of 1/2" 6061 plate cut to size, and attached it to the edge of Tracy's
plate with three 1/4" socket head bolts thru counterbored holes in the new
plate and tapped holes in Tracy's plate. Used a hole saw to cut the starter
nose hole and bored it out to final size. That cheap-o Harbor Freight
milling machine is coming in very handy! The top starter mount bolt came too
close to the existing plate-to-motor-mount spacer to allow a nut on the back
side, so I put a 3/8" Heli-coil in the plate. The starter I was using with
the Ross drive would have worked but it was still in the way of my oil
cooler duct so I used a different starter, out of the 1986 RX-7 automatic.
The mounting ears on the new starter are at an angle (130 degrees?) to each
other which allowed me to cut more off the added plate for duct clearance. I
had to make a 1/8" thick shim plate to keep the new starter gear from
slightly contacting the flywheel ring gear. I painted the drive housing and
Tracy's plate, and powder coated the added plate and the mounting spacers. I
am using a $90 Harbor Freight powder coat gun and a small toaster oven, the
main plate would not fit in the oven.
Chuck Dunlap
