Sounds like a 3/32" O-ring would be very bad, esp

with a bit of crud

build-up in the groove, or even sealant.  Using

sealant sounds like a

bad idea in that this fills the expansion volume and

will either force

the sealant out when heated or break something.  Non-

curing sealants

probably extrude when heated the first time.

SEALANT??????!!!!!! ........ There shouldn't be no
stinking NOTHING in that groove but the APPROPRIATE
seal, PERIOD!!
                                  Butch

On the way to the museum Butch.

Paul Lamar

Hi folks !

After more than 15 years of rebuilding  and modifying rotaries, i would
like to comment on these discussion.
I have always used the Mazda stock gasket / o-ring set.
When putting the engine together, i always use water free Vaseline to
hold the o-rings in place.
A little Vaseline on the o-ring and a brush to put some in the groove.
Then the o-ring will stay in place for hours, if needed.
Worked in stock 10A:s to highly modified 13B turbo´s.

Good luck !

/Martin

The TES O-rings Martin are stiffer than the stock O-rings. It is harder
to get them to lie in the groove. Even with Vaseline.  When you buy

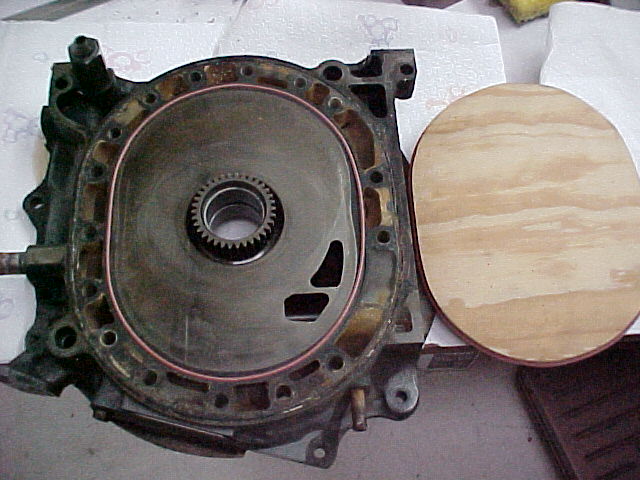

them they don't come flat. I found that using a plywood
form to pre set the TES  O-rings works well. Here is a picture.

Paul Lamar
