Yes. Still wanting to draw it all in autocad as 3d but time not

permitting right now. I am falling in love with the 3d solids stuff.

...Chrissi

finally!

Someone else understands how nice solids are! Attached is a .dxf file of a
13b turbo block. It is close enough for rough work. I didn't use a cmm or
digitizer, just graph paper, trace, and enter, so it's not dead nuts, but it
is pretty close. The .dxf file will be 3D wireframe only. I exported for
AutoCAD 12, if you have a newer version let me know and I will export a
better solid or suface model. I have been too busy to add all the bolt
holes, front cover, turbo etc. Hope somebody can get some use out of it.

Monty

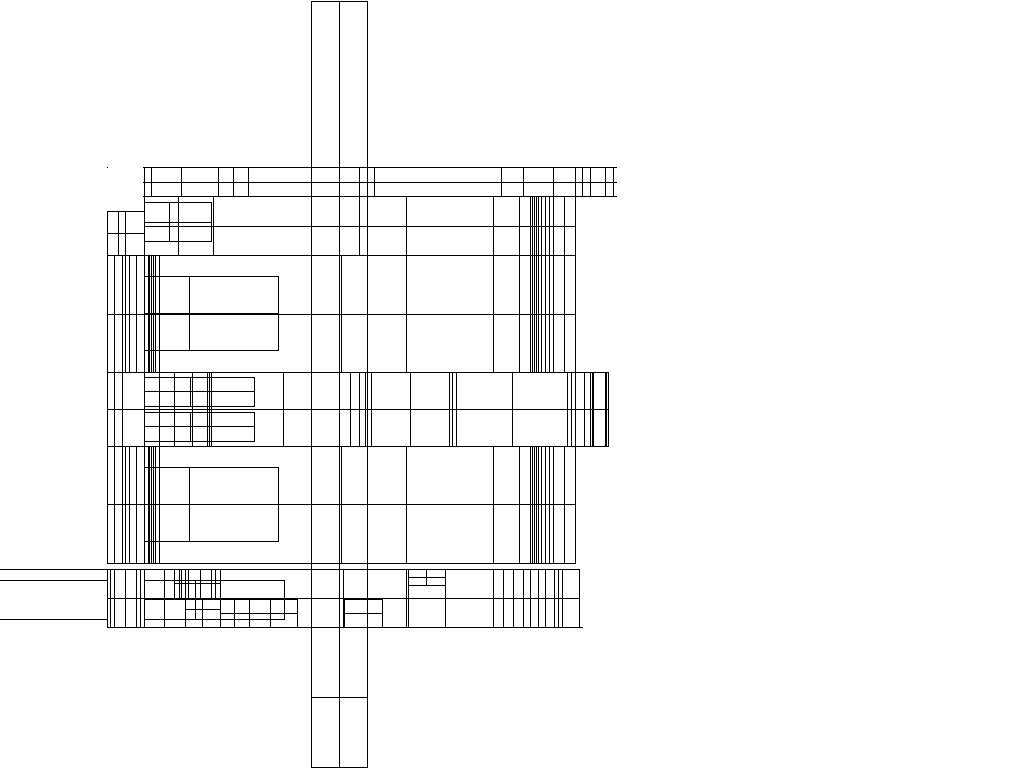

This is what I got when I loaded it into ACAD R12. What do I do now
to make it look like a 3D model? Which buttons do I push?

Paul Lamar
