Don Dunbar wrote:

Hi Paul and Group,
Some time back there was some 13B sump details posted, is there any Autocad dwgs avaliable.
I am looking to make the sump amd engine mount in one.
Regards Don Dunbar.
Mustang 11 builder.

I have them in ACAD R12 Don.

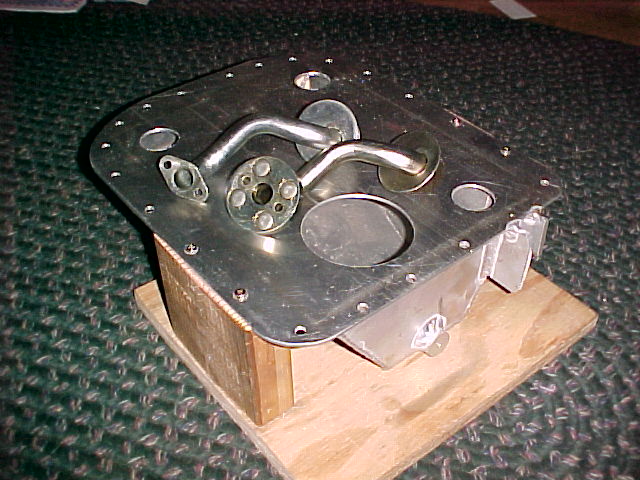

Here it is. I used a stock pan to make a pattern to drill the
pan bolt holes. The two ears on the left of the picture are
the rear motor mount brackets. Bruce Frank did a great job of
welding this up for me.

Paul Lamar

More oil pan pictures for the new guys.
The flange does double duty as an anti foaming plate.
Holds about one U.S. gallon of oil. There will be another
quart or so in the oil cooler, filter and plumbing.

Paul Lamar
