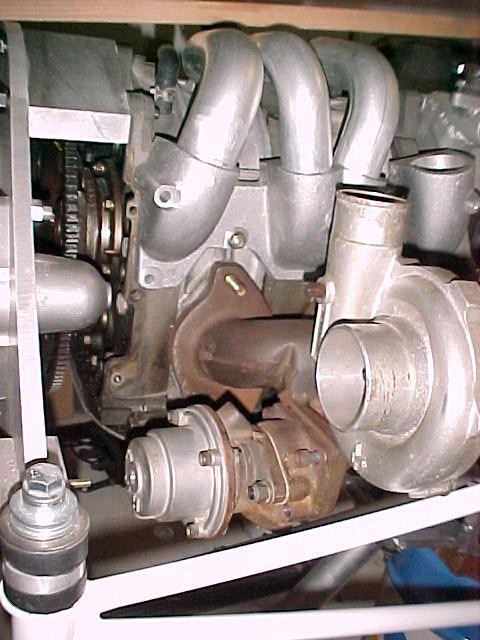

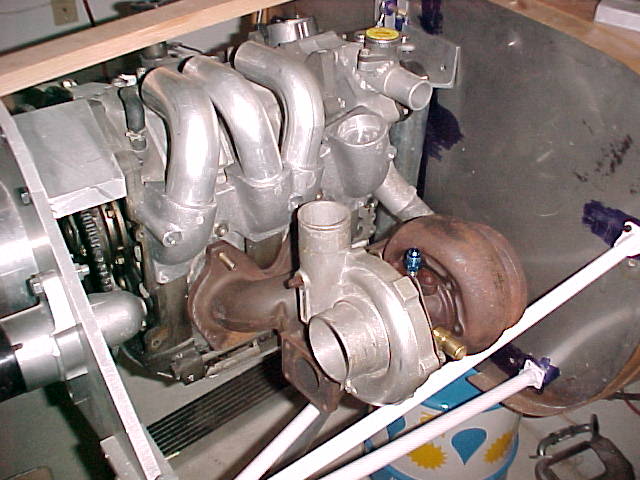

Ernesto brought over his HKS manifold and TO4 turbo today
and we tried it on the Kis. Looks like it is going to work.

Minor change in upper tube mount on the firewall to gain
a bit more clearance. It looks like the mounting point
on the firewall needs to go out two inches and perhaps down
two inches.

I'll be working on some drawings for his Cozy installation.
That HKS manifold is a bit big but it is not all that heavy
at around 12 pounds. Nice piece of work. The waste gate however
is five pounds alone. Another nail in the waste gate coffin.

Paul Lamar
