"Parlow, Eric (Turbos-Asheville)" wrote:

 "I would like to use a turbocharged 20B with 2.85:1 and CS prop.
 Planning for 350 bhp climb & 200 bhp cruise to 12k ft."

 Could this power be made from a turbocharged 13B reliably?

 Eric Parlow
 RV-8A

Perhaps. Nobody has done it yet to my knowledge.
The turbo 13B engine will make 350 HP no problem.

The big problem would be finding room for the cooling system.
We are still in our infancy when it comes to cooling systems.

The latest designs with the louvered outlets show some promise
for reducing the size of the radiator but the exact size of the
radiator needed still has not been determined by real world
field trials.

200 HP cruise should also be no problem.

Paul Lamar

"Parlow, Eric (Turbos-Asheville)" wrote:

Would you say the power of a rotary aircraft engine is only limited by the
amount of cooling?

Can you give rough numbers to the energy distribution of the aircraft
rotary?

i.e.  30% shaft work
        45% cooling work (coolant & oil)
        25% exhaust work

ERic--

Right at the moment, given all we have learned in the past
four years, that is true statement.

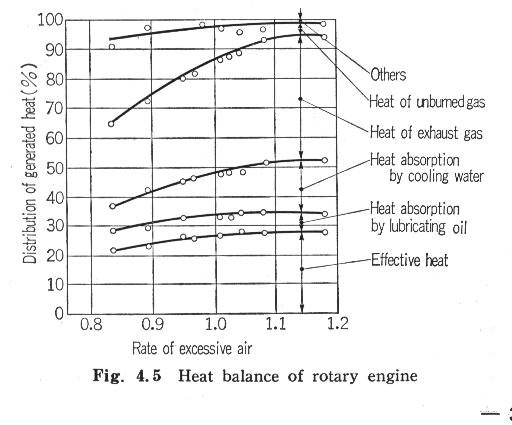

The exact heat balance is somewhat a function of the load you
put on the engine and the mixture. Here are a few charts
from K. Yamamoto's Rotary Engine books and tech papers on

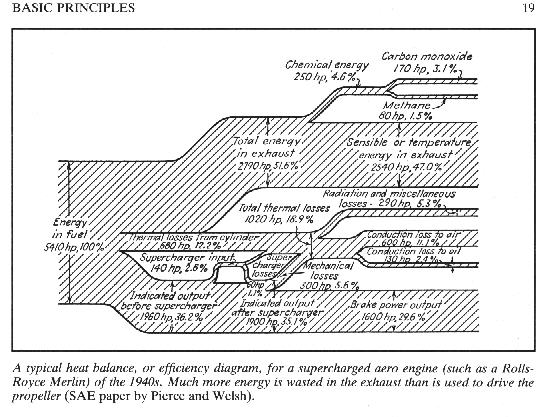

the rotary. Here also is a Rolls Merlin for perspective.

Paul Lamar
