Jerry Hey wrote:

 >  > Paul, The nsu engine looks like the perfect arguement for the
 >variable intake timing you had laid
 >>  out some time ago. Some of the last versions of two cycle engines
 >>used variable timing in the
 >>  intake and exhaust to improve drivability, even on the GP bikes
 >>making 400 hp/l ! The comments
 >>  about the rotary I.C.E. still being a relative baby do ring true.
 >>A version of the variable inlet
 >>  seems a perfect fit. Any plans to persue or too many irons already
 >>in the fire? I know I would
 >>  like to help.
 >>  Bill Jepson

 >Ken was going to build up an engine with them but then he got
 >shipped off to South East Asia. Are you back yet Ken?
 >
 >Other than the idle I think it has few advantage for an aircraft
 >engine as they mostly run from 5000 to 7500 RPM. A simple P-port
 >would give the same or better power.
 >
 >Paul Lamar

 Paul/Bill,  Ken shipped the variable intakes to me, hoping I would do
 something with them.  Would  you like to have them?     Jerry

Good idea Jerry. Bill Jepson may have more time.

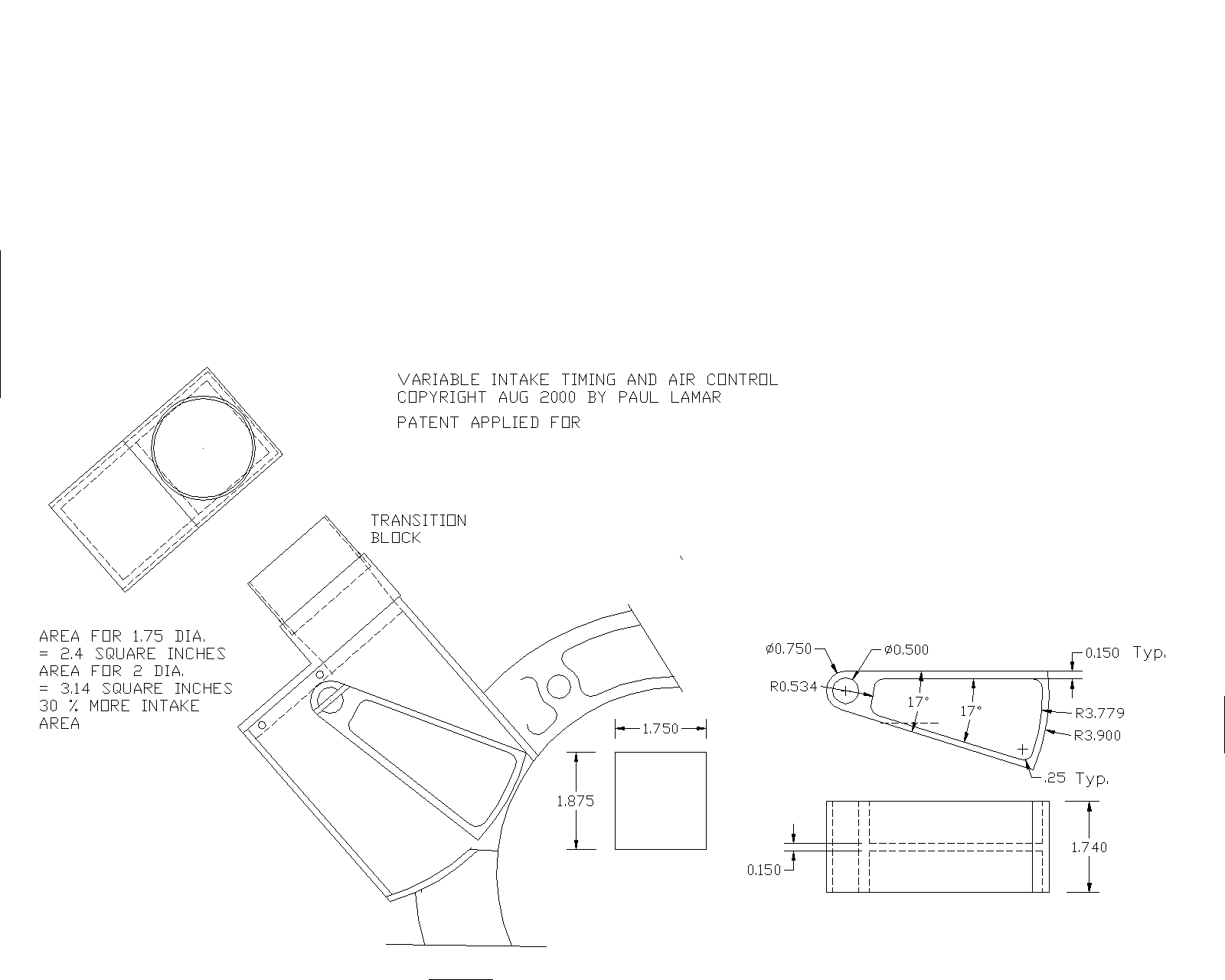

BTW guys I think it best if we run them upside down from the way
I show them in the drawing. That seems to be the way NSU and
Mazda time the engine for low power and better idle.

Paul Lamar

Bill,  send me your shipping address

 Jerry

--

J-Wind Designs
Motor Mount Plates,  Engine mounts
j-winddesigns@thegrid.net
831-385-0908

Also Bill this arrangement will be better for low and medium power.
Timing is more favorable over the HP range.

Paul Lamar
