Jerry Hey wrote:

About a week ago I wrote that the Mazda Oil cooler would not fit any
place inside the Tailwind Cowl.   You have to understand that making
statements that later turn out to be untrue is  part of the normal
process for me.   The  oil cooler fits very well next to the fire
wall turned so the core is horizontal.   There is a beautiful
unobstructed exit area between the engine and fire wall leading to an
an outlet tunnel at the bottom of the fire wall that is more than
adequate for the oil cooler. (it is the only opening for exit air in
a Lycoming 0-320 set up).   The stock opening is approximately 24 to
30 sq inches.  The inlet can be by  scoop through the cowl top or

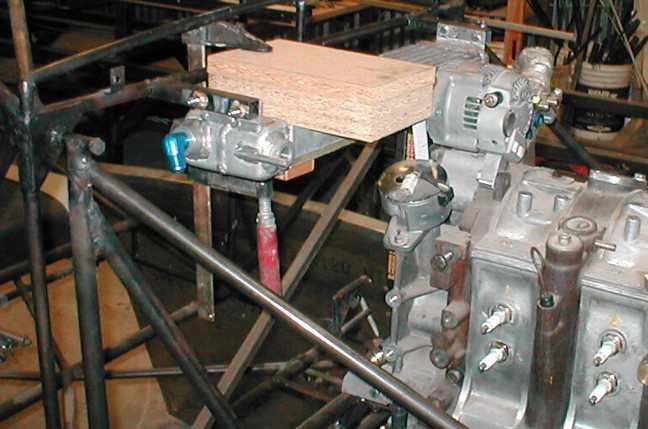

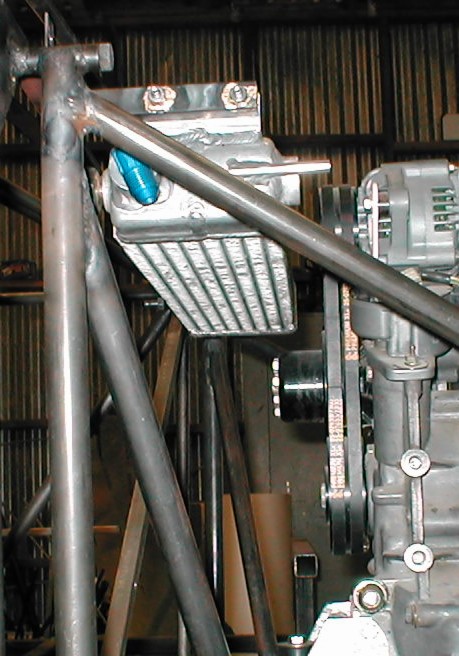

side.  Here are a couple of photos of the cooler tacked in place.
The wood on top represents the inlet scoop.

The Mazda Oil cooler when installed in this position is: 1) easy to
install;  2) easy to duct air to; 3) easy to exhaust air from; 4)
does not conflict with other major components.

Jerry
