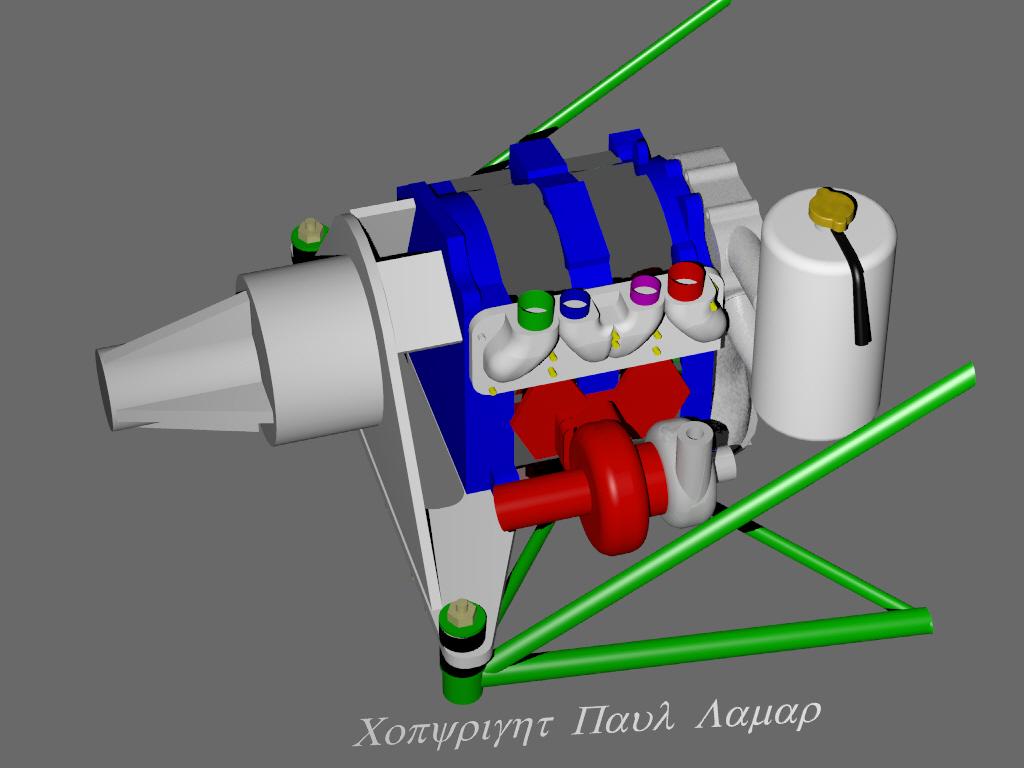

This is an idea Chrissi had (I think) of using a combination
of the motor plate motor mount and the Schertz
Beam. This ties everything together making it super
strong. The torsinal stiffeness of engine PSRU is
also enhanced. The two pieces of 1/2 inch alumiunm
plate can be pocket milled where necessary to save
weight. Good idea Chrissi.

Paul Lamar

I like that idea too Paul.
Could you post it right side up?
Royce

But you won't see anything :-). I'll have to re render it.

Paul Lamar
