ACRE NL wrote:

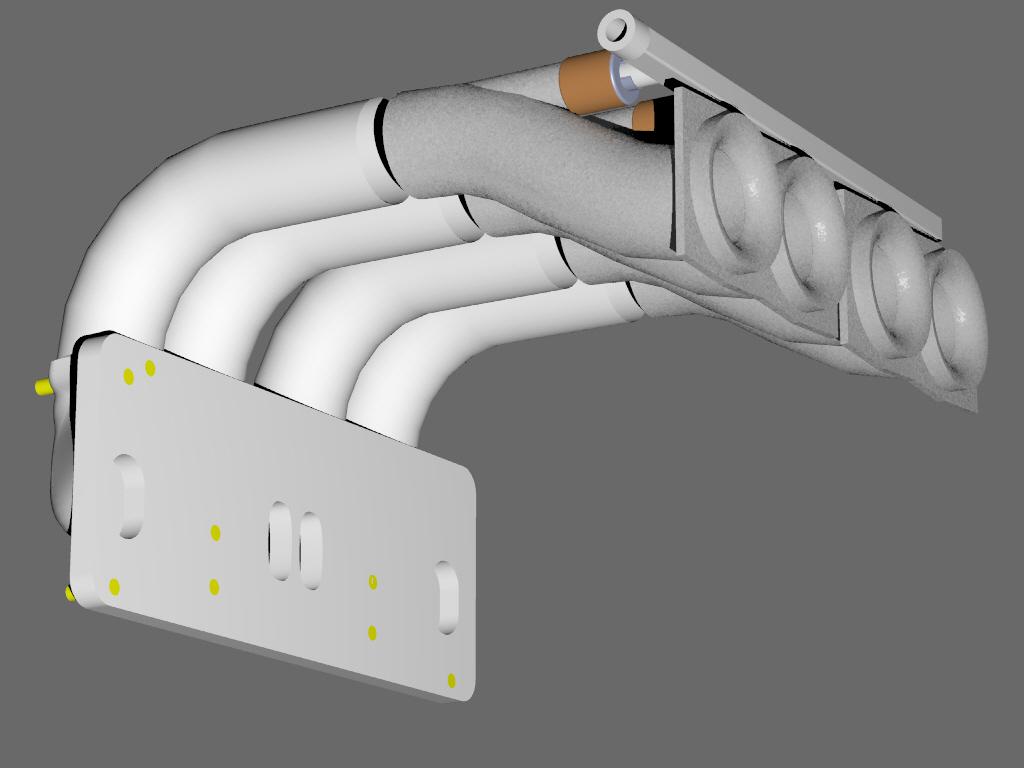

This is what the injector system will look like
when all four are assembled.
The fuel rail is welded out of 1/2 inch square steel
tubing. By connecting this system to the intake manifold
with pipe or tubing you have the flexibility of tuning the engine
for whatever RPM your PSRU ratio allows.

The plenum, holding the throttle body, can be fabricated
out of sheet aluminum. Any simple throttle body can be used.

Paul Lamar

This is the complete manifold set up. Four tubing or pipe
bends complete the system.

Paul Lamar
