"Schertz, William W." wrote:

All,

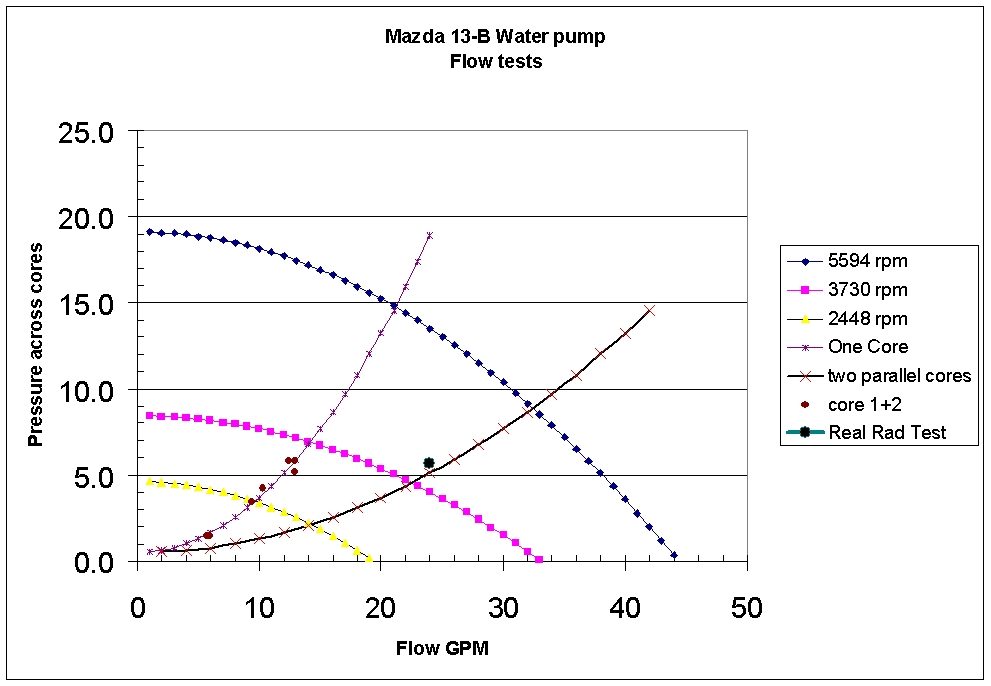

I have added the point for actual flow through the two evaporator cores in
parallel to the previous curves that I published. Some points to note.

1. With the open loop system that I was using, the entire pumping capacity
(pressure capabilities) of the pump is not available for forcing fluid
through the radiators, therefore the point lies at a lower pressure and flow
than would be capable in a closed system

2. It falls very close to the curve-fit line shown before, therefore I am
happy with the result.

Bill Schertz
