William wrote:

Dan,
What information do you need to do an analysis on a different form of

motor

mount? I designed one using rectangular 4130 steel and bolting to the

oil

pan bolts.  I would be interested in seeing the analysis of this using

your

tool.

Bill Schertz
Kis Cruiser #4045

To save some time Bill. Dan will need dimensions of the tube and wall

thickness.

A dwg, IGES or DXF file would help.

Paul Lamar

Dan,
The "tape" was to hold the bolts down while putting the assemble together
before nuts were applied.

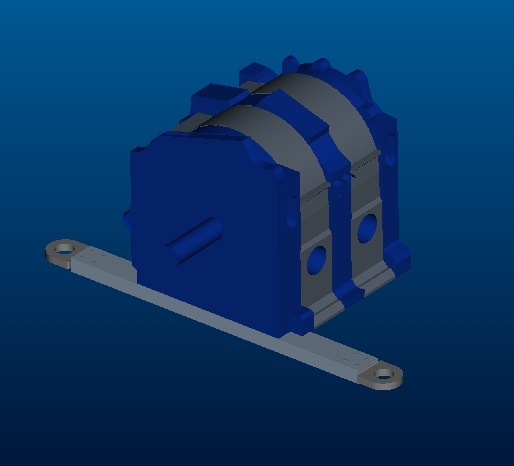

I have attached a DWG file. The cross bar is 1"x2" x 0.065" wall 4130

steel

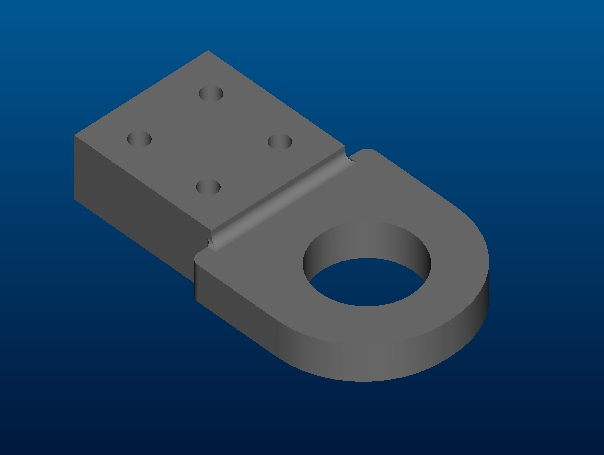

tubing. The ends are 1/2" Aluminum (2024), and I use Barry mounts.

The hole through the bar is for the oil cooler, and has a 4130 steel tube
welded top and bottom, and then 1/8" plates on the front and back to make

up

for the missing material.

Bill Schertz

Dan, let me know if you need this converted to an iges.

Paul Lamar

--Dan Ruggirello wrote:

Bill,Paul,
Do you have the fastener locations where the beam is attached to the block?
Does the block rest on the beam as shown?
Dan


Long oil pan bolts. The engine rests on the beam.

Paul Lamar
