Dan Ruggirello wrote:

Hey Paul,
For what it's worth here is a quick run of the water pump pulley.  100

lbs at about mid belts

location.  0.025" thick steel.  Left off the thick pulley - modeled it

as rigid.

Dan

Isn't the internet and amazing thing? Thanks Dan.

Paul Lamar

 Hey Dan, That's amazing! Sure shows why I need 8 bolts. Thanks.

Ian Eight Bolt  Beadle

I would put at least a thick washer on there Ian as well.

Paul Lamar

Dan Ruggirello wrote:

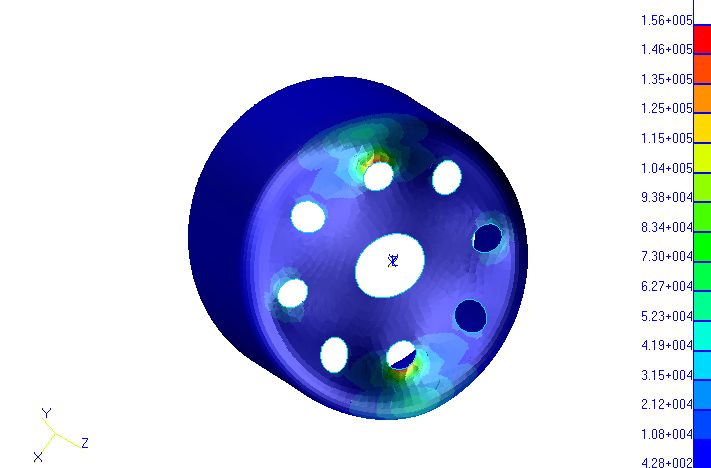

Here is a better comparison.  4 bolts fixed and load in direction of fixed
bolts.  8 bolts fixed and load same direction.  With 8 bolts, the stress
values are reduced by 50%.....

Dan
