TORQUE "LET'S TORQUE ABOUT HORSEPOWER"

It seems that wherever you go, people seem overly obsessed by torque. "Yeah that engine may have a
lot of
horsepower, but it really takes torque to turn that prop", just as if we were talking about two
unrelated
characteristics of the engine. Yes! It does take torque to turn that prop, but torque alone is
almost meaningless in
describing power. Torque is only a measure of force, specifically operating on a lever arm. The most
common
English unit of measure being foot-pounds. This perhaps best represented by the Torque wrench in
your toolbox
for tightening critical threaded joints. When the book says tighten to 40 foot-pounds, you could do
this by applying
40 pounds force at the end of a one-foot long wrench, or 20 pounds on a two-foot wrench. The torque
is the
product, force times lever length. Just to make things more complicated, the English unit for "work"
is also the
product of pounds force times feet (distance rather than arm). Many references try to sort this out
by using
pounds-feet for one and foot-pounds for the other, but if you are easily confused like me, just make
sure you
identify the units you are using as either torque or work.

A simple-minded cartoon might help - we have two employees at Acme Machine Company. Our first
employee is
resting (possibly sleeping) on the machine handle. He is providing torque - if it is a two foot
handle, and he is
resting 100 pounds of his weight on this handle, the torque is 200 foot pounds. Even though he is
being paid by
the hour, he is not doing "work", a totally inert 100-pound weight would accomplish just as much.

See jpg #1

However, our foreman's "pet" George is busily cranking away on his machine, applying a force and
rotating the
handle at a useful rate. He is doing work, and not just because he is getting tired and sweating.
Rotary work is
torque times the distance around for each turn completed. Power is the rate of doing work, or in
this case torque,
times 2PI (6.28) times the number of turns per time unit, a typical answer being in foot-pounds per
minute, or per
second.

See jpg #2

HORSEPOWER - THE PONY TO PUT YOUR MONEY ON

As we stated above, power is the rate of doing work. Early in the days of steam engine development,
one of the
first uses was for pumping water out of mines. Horses were used for this job, rotating mindlessly
around a turnstile
to drive the pumps. In order to sell a steam system to a mine owner, you would need to tell him how
powerful it
was. An enterprising young man named James Watt observed and measured work being done by horses, and
decided that it was about 550 foot-pounds per second (either he was watching union horses, or was
foretelling
current advertising techniques of the auto industry, for any self respecting horse can easily exceed
that work
rate). Thus, a one horsepower work rate is equivalent to lifting 550 pounds one foot per second, or
any other
equivalent product such as 100 pounds 5.5 feet per second. For rotary work using torque, the
distance is around
the circle; horsepower is torque times 2Pi times turns per second, divided by our 550 number (for
rpm the divisor
is 33,000). If you have some horsepower, in a manner of speaking you might say, "Torque is cheap"
(groan), just
gear her down". That is the secret of bulldozers and tractors, which usually have surprisingly
modest horsepower.
As we see from the computations, rpm alone is also not an automatic indication of power.

SOME TORQUE MYTHS

"Long stroke makes more torque". This one probably came from the old method of sizing engines for
tax purposes.
This barbaric custom was common in England and Europe, the British RAC and French CV being good
examples.
Total piston area was the criteria, using old state of the art values for piston speed and BMEP
(brake mean

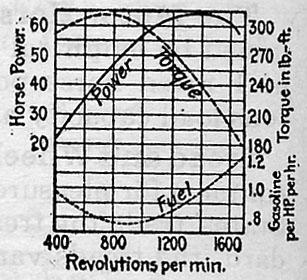

effective pressure) (1000 ft/min and 67.2 psi, specifically). The figure below is a good indication
of the state of the
art when these rules were laid down.


See jpg #3


>From a first edition Mark's Handbook of 1916, this was a six cylinder Alco engine with 4.75 bore,
and a 5.2 in,
stroke for 553 cubic inches. The famous old Austin Seven was named for the seven RAC horsepower
under
those rules. The Citroen 2CV and the Renault 4CV are other examples. It did not take car builders
very long to
realize that they could offer more performance (for their tax dollar) at the same RAC tax
horsepower, by
lengthening the stroke. More torque?, of course - well DAH!, it is a bigger motor. Obviously you
could also
increase torque an equivalent amount by increasing the bore, but the tax man was at the door
waiting. This is the
reason that all those early postwar engines had ridiculously long stroke.

"Them Diesels make more torque than gas engines". This is a true mistake of perception, brought on
by
comparing big truck Diesels with car engines. This myth has been at least Partially discredited by
General Motors
unfortunate 350 inch "Olds" Diesel. The truth is, that for the same displacement and manifold
pressure, the Diesel
will provide significantly less torque (and horsepower) than the equivalent gasoline engine. The
reason for this is
the fact that direct injection has problems providing a uniform mixture ratio distribution, such
that at full throttle you
run into the "smoke limit". This is typically at a much leaner mixture than the near stochiometric
operation at full
throttle in a gasoline engine. If you can't usefully burn the fuel, you cannot make the power.

PERCIEVED TORQUE

"I know torque when I see it, and them rotaries don't have it". Most people do not have a real feel
for what torque
is and what it does. What they have experienced is typically with a manual transmission, a lack of
acceleration
from a cruise to a passing situation. This is best described as a "peaky" engine with a reduced area
under the
power curve. In today's overdrive world, we are cruising 5000rpm engines at about 2000rpm at highway
speeds.
If we do not have a "fat" power curve, there is not much extra power available in going to full
throttle. Modern
automatic transmissions have made those "torque holes" almost invisible, and an aggressive driver
has already
downshifted.

SOME TRICKS WITH TORQUE

It is often desired to have a power curve for an engine, and the data is difficult to obtain. Most
specifications do
list peak power at the given rpm, and peak torque at that given rpm. Of course it is good to
remember that for
advertised data, that the sales department gets two votes, while the engineering department gets
only one vote.
By using the simple equations you can convert that data to two torque points and/or two horsepower
points. Now,
you high school teacher wisely told you that you should not try to draw a curve with only two point.
However, we
also know that these points are tangents on the curve, falling of on the low end from valve overlap,
and the other
end from breathing limits. It probably works best to first draw the torque curve, and recomputed,
using these
points to make the horsepower curve. Some engines put lumps in the torque curve from intake tuning,
and other
tricks. But the approximation works pretty well most of the time (This will not work for classic
airplane engines,
because they do not give you peak power, but power curves are generally available for them)

TORQUE AND POWER RELATIONSHIP IN ENGINE MODIFICATIONS

In modifying an engine, the various "tools" work on different parts of the power picture. Increasing
compression
ratio can increase the torque (as long as you can get away with it). But usually has little impact
on rpm
characteristics. "Porting" will usually have little impact on torque in the lower speed range, but
will move, and
possibly increase the "peak" point Cam modifications generally increase lift, for more area, and
overlap and
duration, with the usual loss in lower speed torque, but moving the torque peak, and possibly
increasing it.
Manifold resonance ("Ram charging") primarily increases the cylinder filling over a fairly narrow
rpm range for
increased torque in that range, but generally decreasing power in the off resonance rpm ranges.
Super charging,
and high energy fuel and oxidizer additions increase power all over the range, with real potential
for total
"meltdown".

CONCLUSION

It pretty much boils down to the fact that that it is not enough to "torque the torque" you have to
work the work!
