ACRE wrote:

This is the perfect rear motor mount. Front for a pusher. I don't,
for the life of me, figure out how I did not know about this years
ago. A rubber rod end. Simple. Left and right hand threads so you
can adjust the thrust line angle. Very important to optimize
the top speed. Use the 1/2 inch size to be conservative.

The ears on the early front cover are a little marginal so
weld on two ears on a custom oil pan as shown.

Paul Lamar

Jerry Hey wrote:

These do seem to be the perfect solution.  Where can they be bought?
Jerry

McMaster Carr.

Paul Lamar

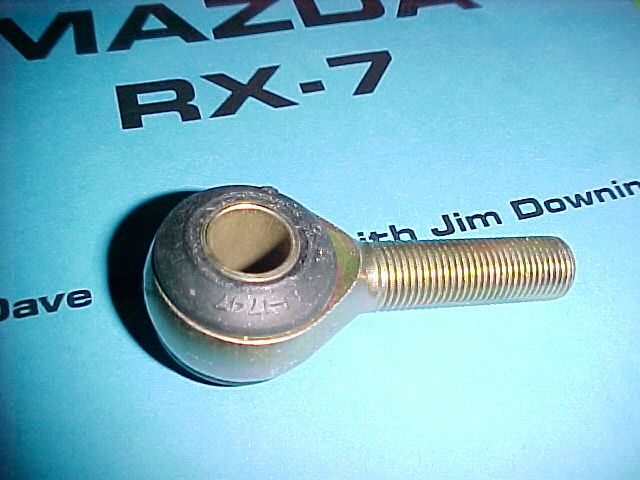

Here is a picture of the right hand version I just received.

Paul Lamar
