George Lendich wrote:

Paul,
This set-up is on a Perspex sheet with mounting holes and centre drilled and flywheel set up for centre. Notice the first
position is 3.30 position and the 2nd picture is the 4 o'clock position.

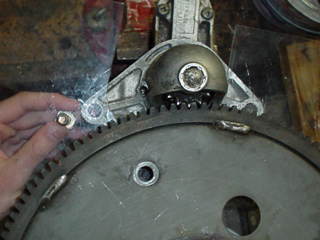

The first photo shows plenty of clearance each side of the snout of the starter motor.

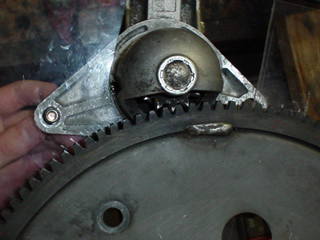

The second shows very tight fit with about 1/2 mm clearance - it might be worse than that when set up to the motor, as my
template could be ever so slightly out.

George (down under)

The snout can be ground away a bit. Either possition is goos with me.

Paul Lamar
