Bill Jepson wrote:

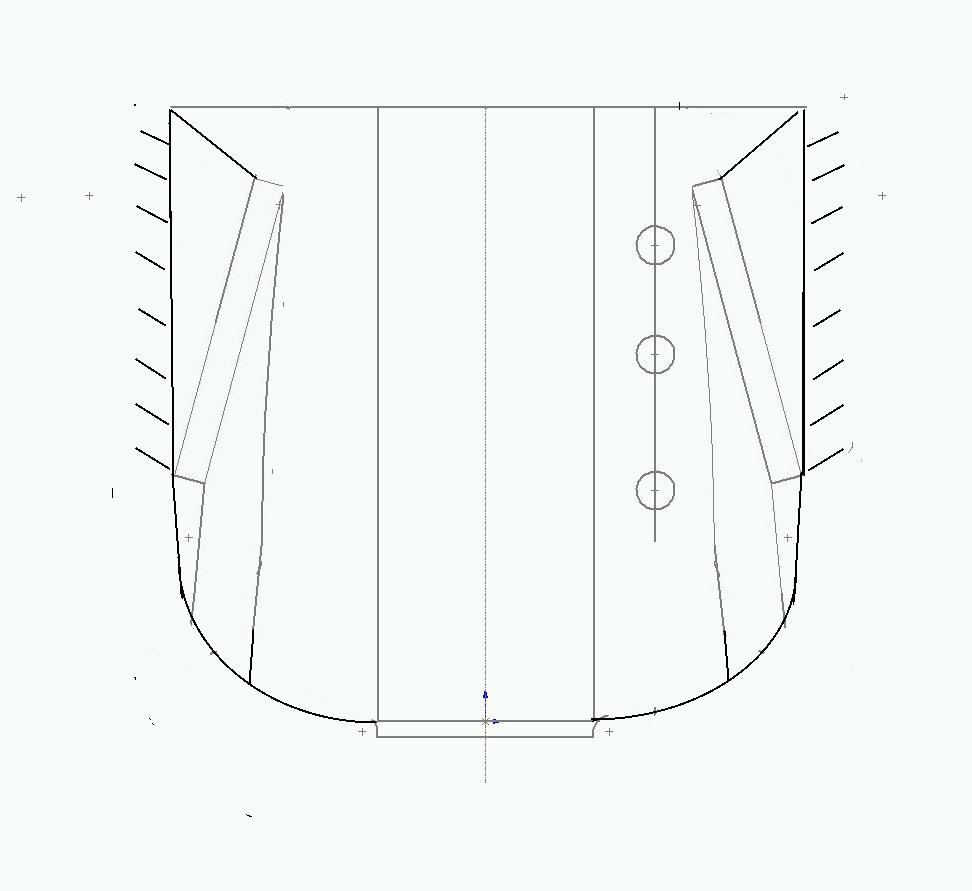

Well Paul here's the redone "saner" cut. I'll do the 3d later and send
it along. I went as
long as I could and still fit everything in OK. The Rads shown are 2 x
10 x 20 or 400cu inches
each. I could easily make them shorter and taller. Only the 3d will
tell. Damm SolidWorks
isn't good for skinning. Takes some work, and Work intrudes now. Bill
Jepson

Worse Bill. The distance of the exit duct wall behind the rad must be 50% of
the length of the rad. That is a lot of exit duct volume! Here is the chart
from Kuchemann & Weber. Read rad core for "block" in K&M speak.

Paul Lamar

This will work well.

Paul Lamar
