Fred Osborn wrote:

Paul wrote:

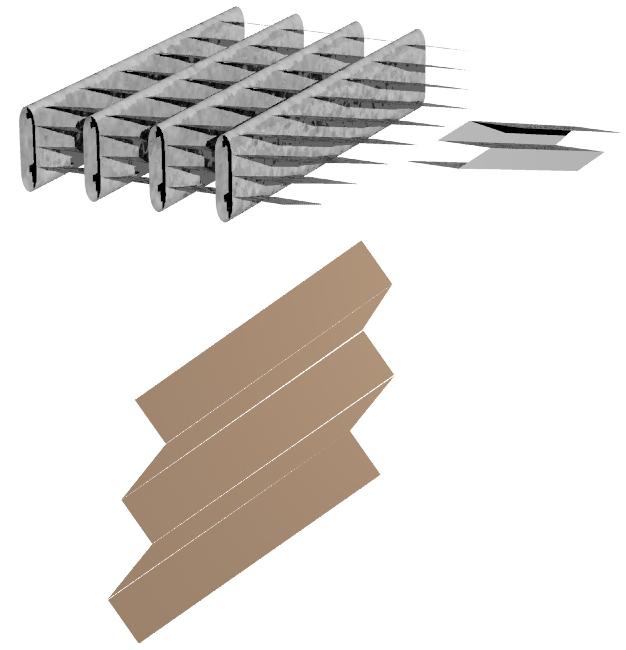

Here is what the fins on a custom rad might look like.

Fred O asks:

Would it work to align the fins fore and aft and angle
thin tubes into the air flow? Tanks on the outboard
ends with an o-ring swivel connection.

Probably but I think this is easier to manufacture with the tanks
on the ends in a two pass configuration. The leading edge tank
can be shaped to a partial airfoil configuration.

The brown item is what the thin fin material would look like
flattened out before it was machine folded up to form the Z
shaped fin strips to be furnace brazed to the water tubes.

I also think this would be lower drag as the oval shaped water
tubes oriented at an acute oblique angle to the flow will have a
very streamlined shape.

Paul Lamar
