Bulent Aliev wrote:

Hi Guys, I have been all weekend at the airport trying to figure out the
plumbing on the Cosmo. The problem is hooking the aluminum tank as part of
the whole system and being able to send all the air to the tank. From there
I'll have a small overflow and recovery tank.
Want to get away without a fill cap on top of the pump if I can?
Bulent

Every time I see those Cosmo ports I get jealous.

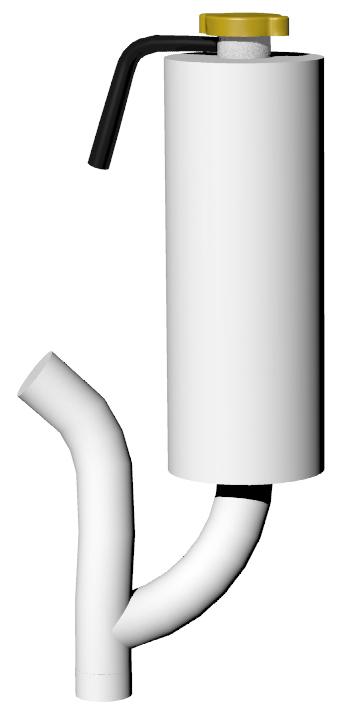

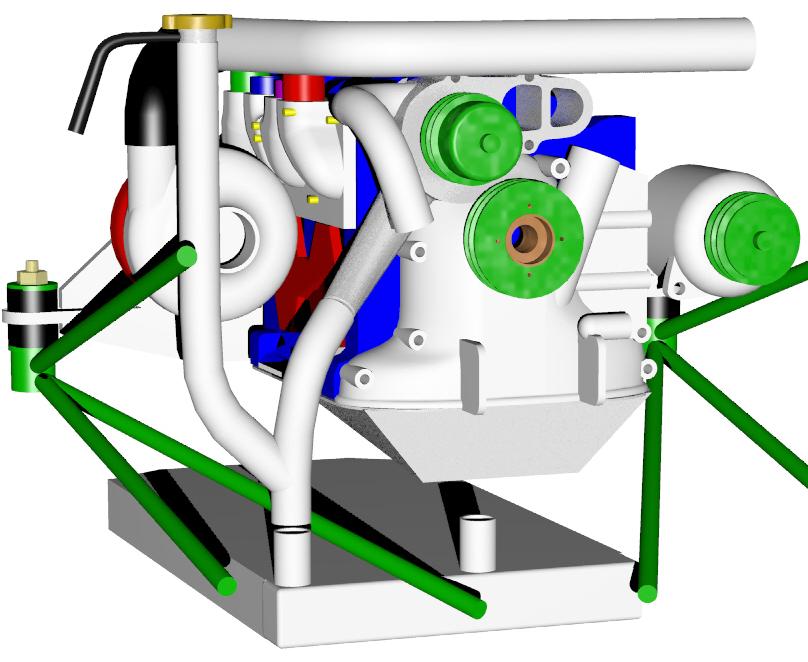

Here is what I am doing Bulent. The stand pipe will be replaced by
a 4 " diameter 11" long water tank that Ed Kleipes is welding up
as we speak. The bottom of the water tank "tees" into the intake
pipe of the water pump between the rad out let and the pump inlet.

This way the pressure cap is at the lowest pressure point in the
system so the average pressure throughout the system should be
higher than the pressure cap. This will raise the boiling temp
and make the rad work better due to a higher difference in temp
between rad and outside air.

Paul Lamar
