Bulent Aliev wrote:

Hi Paul,

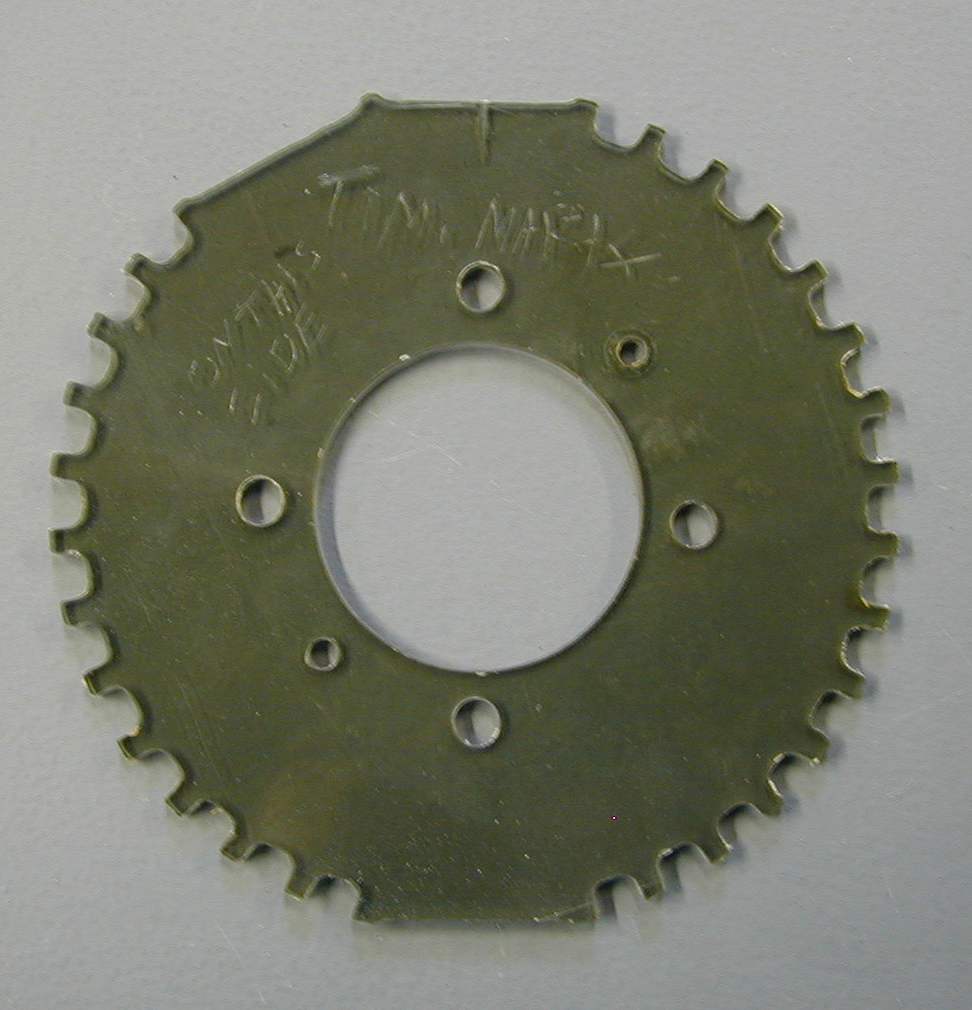

I made a copy of the wheel from 1'8" Plexiglas using my Dremel router.
Will mail it to you after the Holydays.  There is a timing mark and I wrote
on the plexi, so you know on which side it goes. The ring is asymmetric and
can not be flipped. Check on your engine pulleys and make sure you can mount
it. I don't think you have a flat mounting surface.
Turns out that the Cosmo and 20B have bigger mail pulley just about the size
of the ring. I fill space the ring  away from the pulley.
I have a question. How do you determine the mounting location of the sensor?

Bulent

What is the diameter so I can scale it properly. I don't want to crawl
under my RX8 :)

Good question. Right off the top of my head I would say use an oscilloscope.
We need to ask Tracy that question because it probably triggers
somewhat before TDC.

Paul Lamar
