> Ken Welter wrote:

 >
 > >  > Does anyone know of a source for cog belts and pulleys suitable for
 > >>  application to a 13B engine?
 > >>
 > >>  Hank Huddleston LNC 235 Rotary
 > >>  bahahud@aol.com
 > >
 > >Ken Welter builds a cog belt reduction drive.
 > >Search google for Coot.
 > >
 > >Paul Lamar
 >
 >    I make my pulley as there is no off the shelf source for light
 > weight pulleys.
 >    I make the small pulley from 1045 steel and the large one from
 > 6061-T6 and then hard anodize it.
 >   What ratio do you need ?I do have some used pulleys that I would
 > make a deal on.
 >
 >    Ken
 >   http://homepage.mac.com/rotarycoot/
 >   rotary.coot@verizon.net


 Ken,

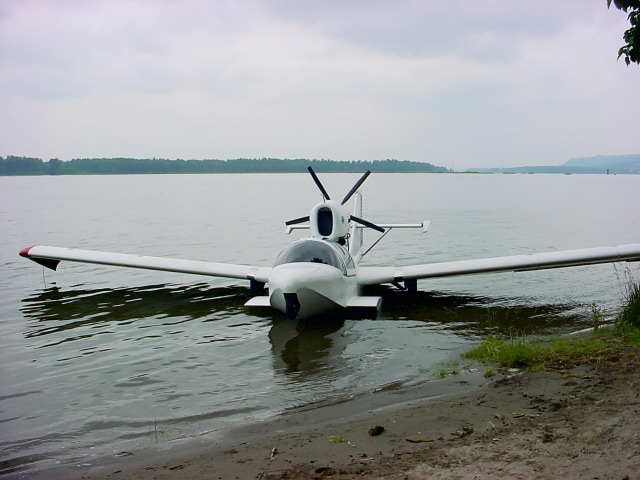

 I'm building a Glass Goose, which will accept a 13B with an in-line PRSU.
 However, the vertical distances are very tight.  A lower CG may be more
 appropriate and a higher thrust line might allow a larger prop -- which is
 currently a 65" Warp Drive.

 What size Warp Drive prop are you running?

 Do you have total weights on your PSRU's?

 Thanks,
 Scott Gettings

   I use a 70 inch 5 blade Warp drive.

   The weight on my 2.95 to 1 redrive is about 75 lbs.

   Ken
