Jerry Hey wrote:

Paul,  on the longer Schertz beams could I weld plates inside the beam
in the form of a  W truss to stiffen the beam instead of a strut brace?
    Jerry

That would not help. Just make it 1/4 or 1/2 inch deeper.
The strrength goes up with the square of the depth. A 1 inch deep
beam is 1. A 1.25 inch deep beam is 50% stronger. a 1.5 inch deep
beam is 125% stronger.

Paul Lamar

"Decker, Michael" wrote:

It's more acurate to say that stiffness, not strength, increases as the cube
of thickness.

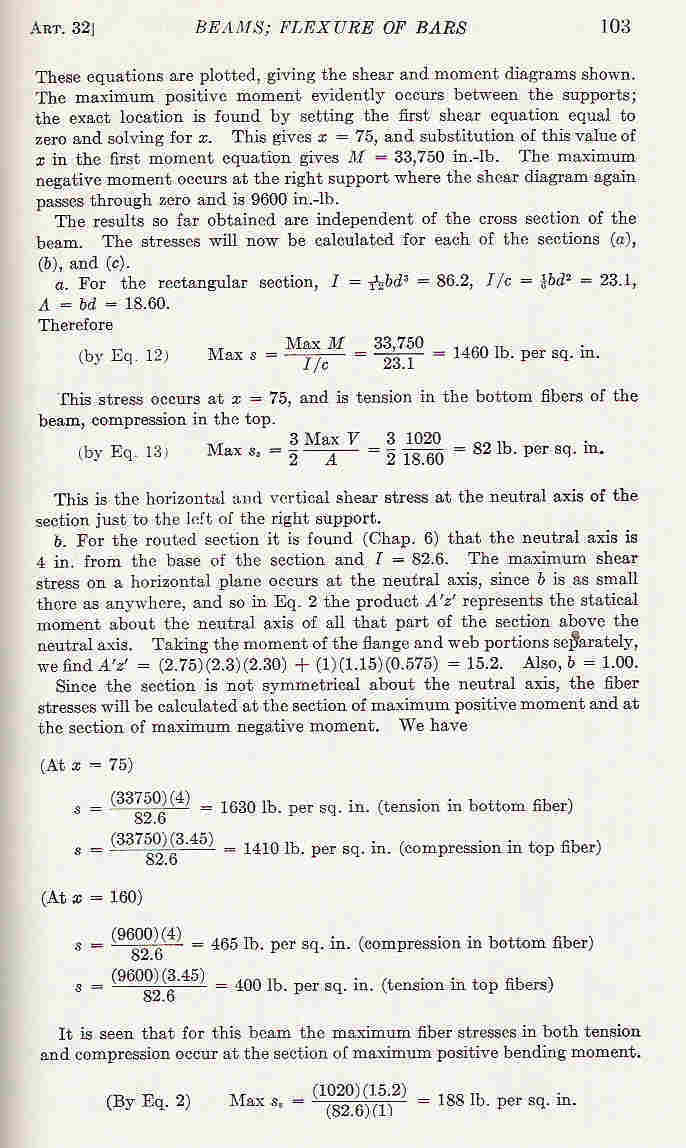

Correct. Stress is inversely proportional to I/c = 1/6 bd^2 I had the right
formula the first time. Square law. Thanks for catching that.

Paul Lamar
