Jerry Hey wrote:

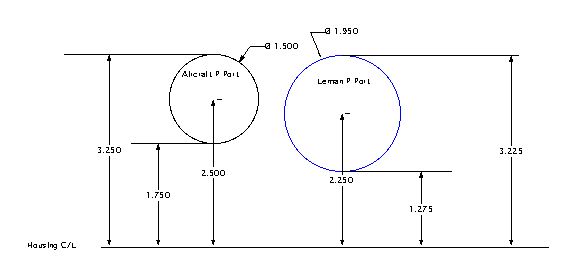

Paul here is a drawing comparing the LeMan port with our port  The
Leman Port dimensions were determined by scaling off of a drawing that
was published by Mazda.  We opened the drawing in PhotoShop and since
we knew the height of the housing, the port size could be determined
using tools provided by Photoshop. We did this about two years ago when
I first started this odyssey.  The numbers should be close but  not
absolutely accurate.   Our port, hence known as the Pfeiffer port,
since Rolf did all the calculations,  in addidtion to opening much
later is also nearly .5 inch smaller dia.  The I.C. of both ports is
very close.  ( I believe the RB p port is 2.25" dia  so it is somewhat
larger than the LeMan port.)  Our port is sized to have adequate flow
up to 8500 rpm.  Certainly it is running out of capacity at 10,000 rpm.

You won't be turning 9500 RPM like the Leman engine anyway. You will be limited
to 7500 due to the prop and the 2.85:1 PSRU. My wild ass guess is it should develop
at least 210 HP. at 6000 and 260 HP or so at 7500 RPM. We shall see.

Paul Lamar
