Bulent Aliev wrote:

He is going to have to use a modest amount of boost indeed with high
compression rotors. Looks like extensive porting of the waste gate is called
for and a new rear cover for the turbo with a straight shot waste gate
pipe.

Paul Lamar

I like this idea of waste gate pipe.
Bulent

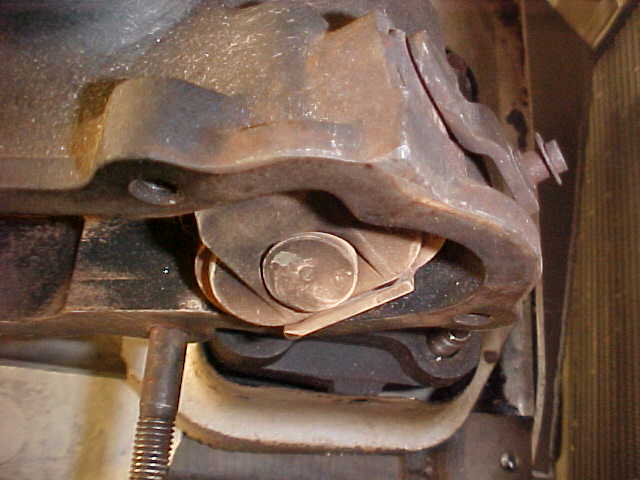

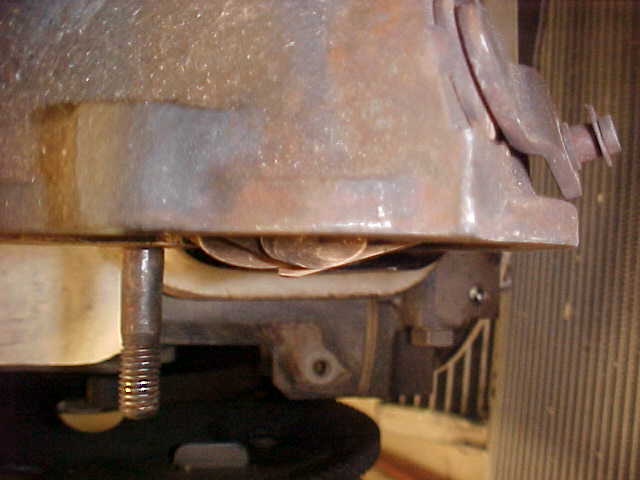

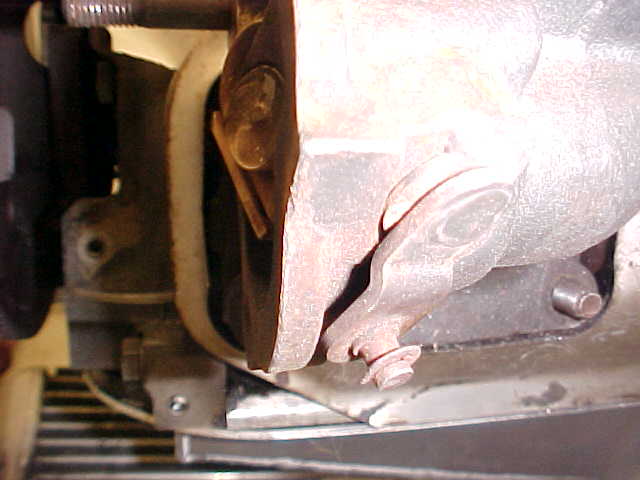

He  is going to need to clearance the lever that moves the waste
gate and add a 3/4 inch spacer between the turbo and the waste gate
cover. This spacer can be laser cut out of 3/4 inch thick mild steel
plate. He won't be able to get a die grinder in there to port
the waste gate passages until the waste gate valve is fully
open to 90 degrees.

Also a 1/2 inch hole (for a start) can be drilled in the panel between the exhaust scroll
and the waste gate chamber. This of course permanently modifies the turbo
and makes it useless for other applications.

Paul Lamar
