Ed and Jerry,

Here is why that won't work. You need those diagonal motor mount tubes
to stabilize the mount horizontally. The come between the oil pan
and the motor mount tubes. Mount the rad duct/core holders to the
motor mount tubes. Also isolates the oil cooler and water rad from

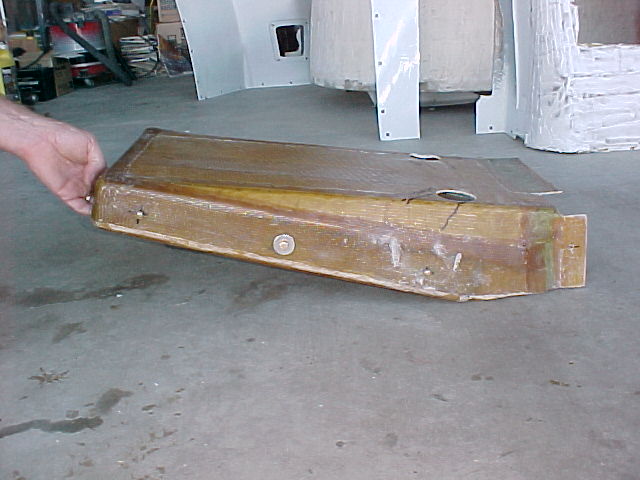

engine vibration. Here is a shot of Perry Mick's rad duct made
from 1/8 thick mahogany door skin plywood and fiberglas both sides.
Carbon fiber would be a bit stiffer.


Paul Lamar
