Edward Klepeis wrote:

Dear Tom
       If you could make the tray out of .125 6061 the reason being
       there is alot of welding that has to be done on this plate
       and if it is to thin it will
buckel when welded making for a poor  mating seal up to the block.If
you have any questions contact me and we can talk.

                                                              Regards

                                                               Ed

techwelding@comcast.net

Does the separator plate have to be welded to the pan?  If it's just
sitting in there sealant would be needed on both sides, but that
shouldn't be a major problem.

Bob White

--
http://www.bob-white.com
N93BD - Rotary Powered BD-4 (soon)

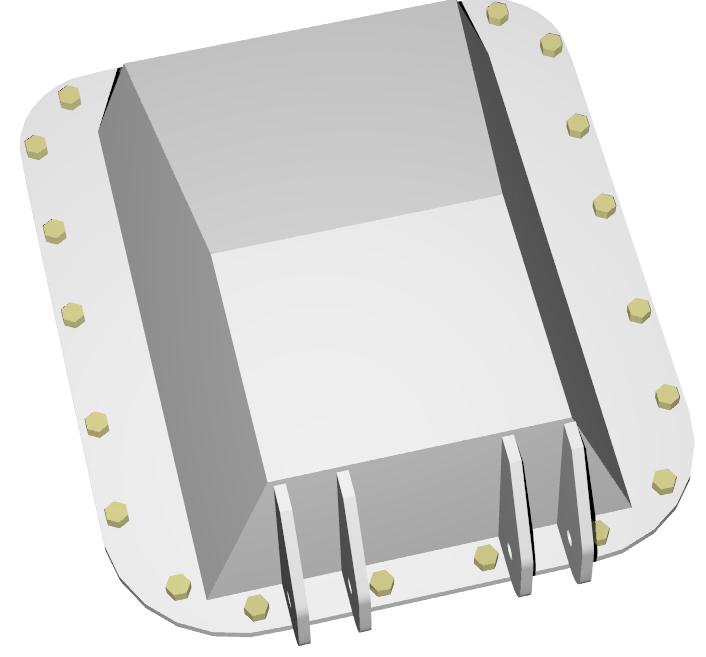

That will work for sure however what we are trying to do here
is kill four birds with one stone.

A: Reshape the oil pan to get more air to a bottom mounted rad.
B: Reduce the weight of the oil pan.
C: provide a rear motor mount bracket.
D: Incorporate an air oil separator plate which you must have anyway.

BTW Tom, is that a computer controlled plasma cutter? If so perhaps you could
cut the other oil pan parts for Ed as well as just the air oil separator plate.

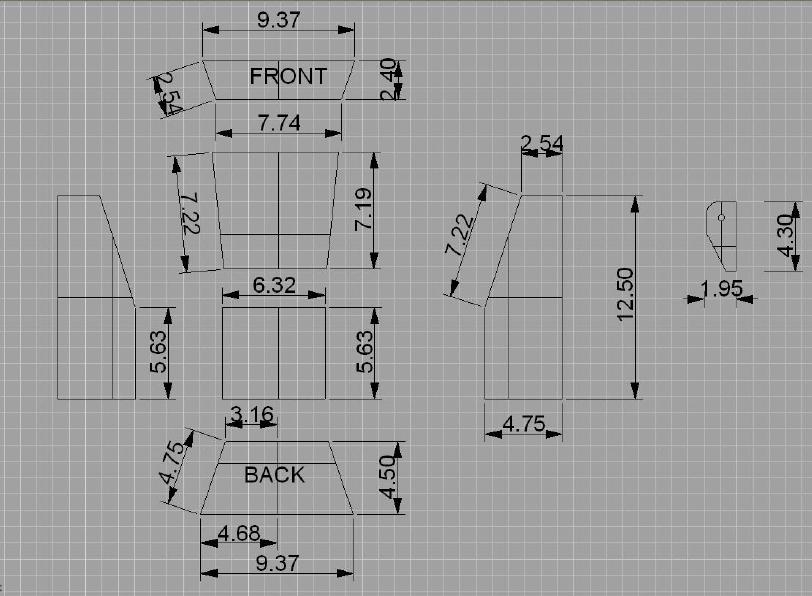

As shown in the this drawing.

Paul Lamar
