Paul Carey wrote:

Hi Paul

We are placing our blown 20B on an engine dyno, and the dyno mob need the dimensions of the rotary end housing bolt pattern at the gearbox face, and the eccentric shaft dimensions where the flywheel
bolts on.

Would you or any other members have those drawings and dimensions?

Regards PC

Paul Carey LAME MC
Aero Group Pty Ltd
P.O.Box 119, Maylands WA 6931
Ph (08) 9371 5205  Fax: (08) 9371 9644  Mob: 0418 959 892
www.aeromanagement.com.au

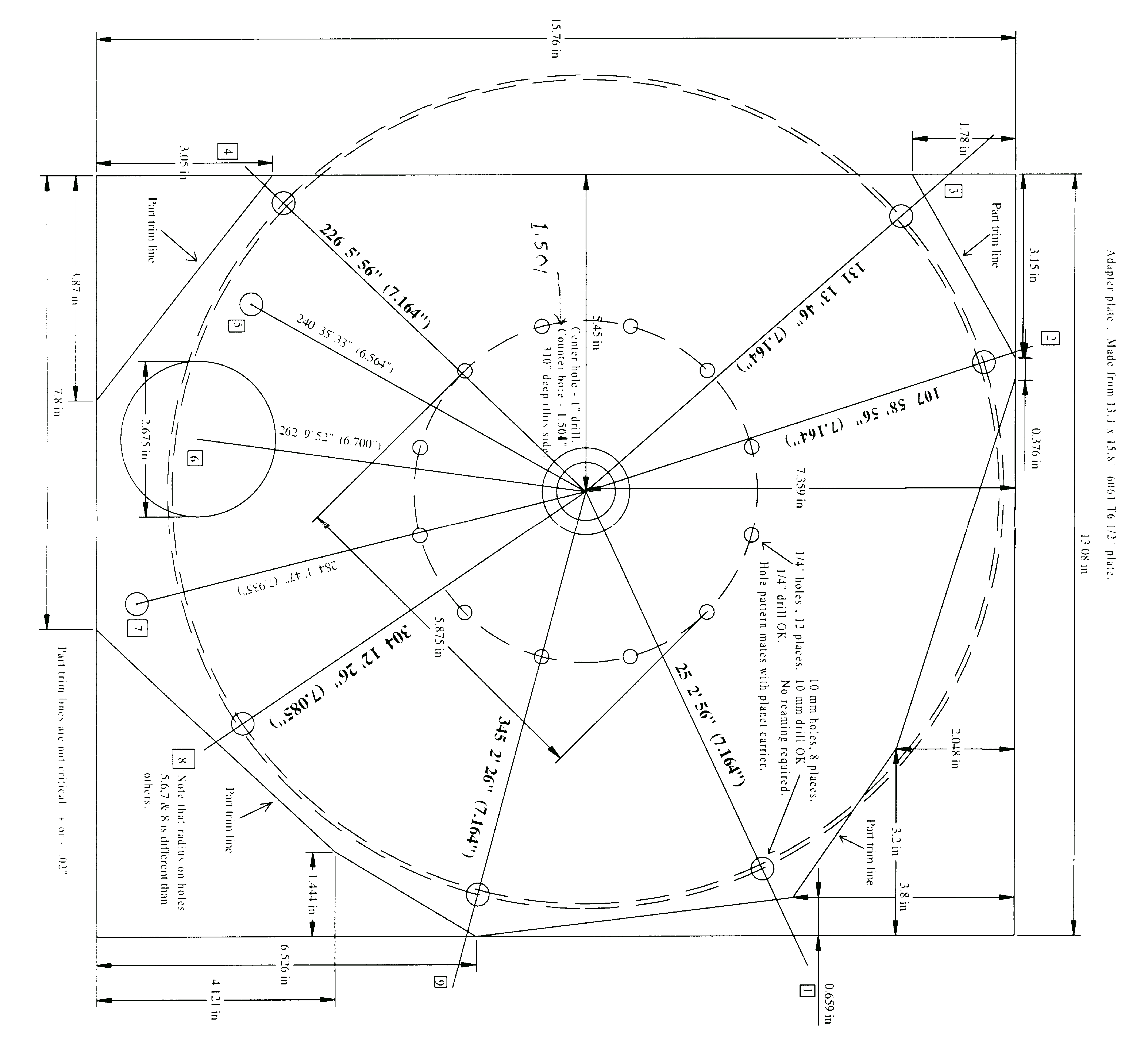

I have the bolt pattern for the bell housings.

Paul Lamar
