"firing pulse comparison chart" is not ringing a bell. Can you describe it some other
     way?

     Paul Lamar

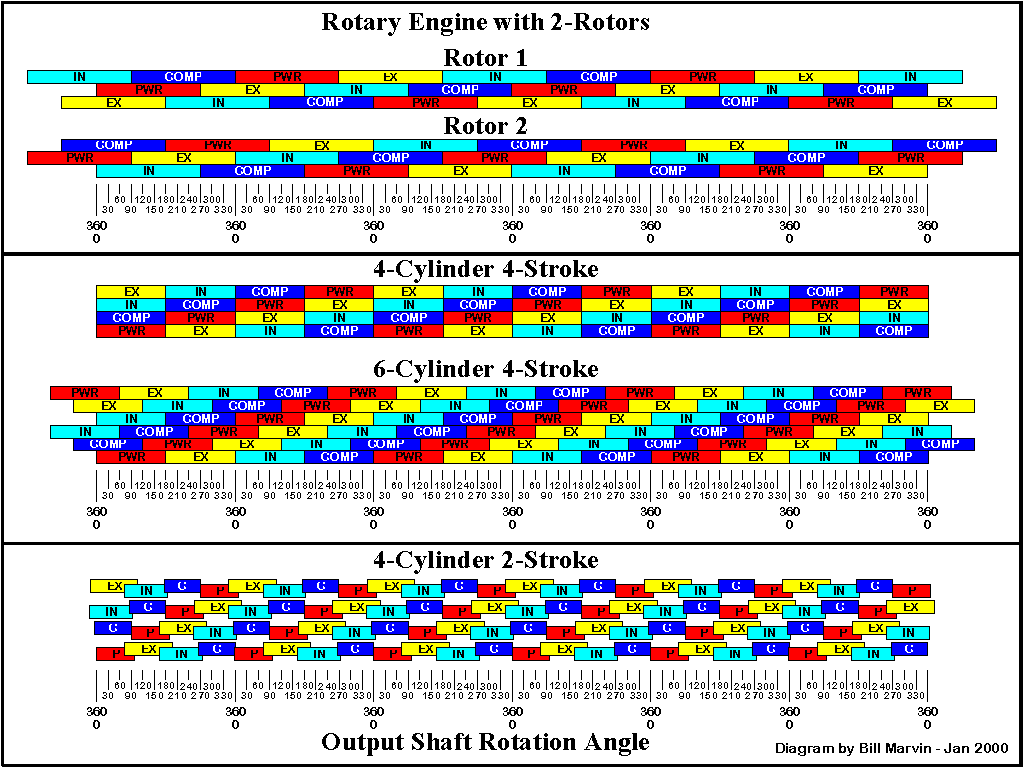

You printed a chart with the comparitive intake, compression, combustion, and exhaust cycles for the 2 rotor, 3 rotor, and several piston engines both 2 and 4 cycle. I believe we were talking about
smoothness of the engines durring the thread. Or it may have been durring one of the famous displacement "discussions" with Vance.
Bill Jepson

How about this one?

Paul Lamar
