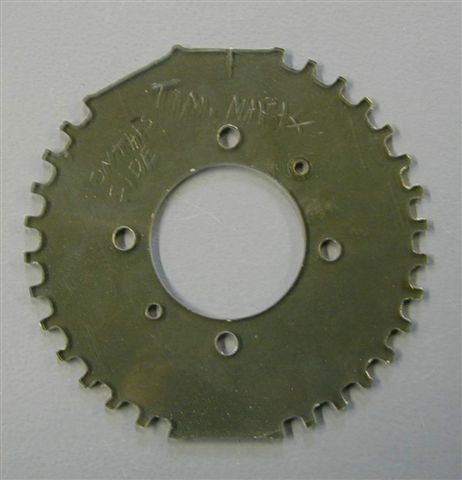

Paul, the two small holes are in a mirror image position from the mazda diagram you posted earlier. The dxf file was also rotated .569 degrees
Otherwise it looks good.
...Chrissi


www.CozyGirrrl.com
Cozy Mk-IV RG 13B-turbo
Plans #957 Chapter? big pieces done, details, details

Thanks for catching that Chrissi. Did your DXF copy load correctly
with circles?

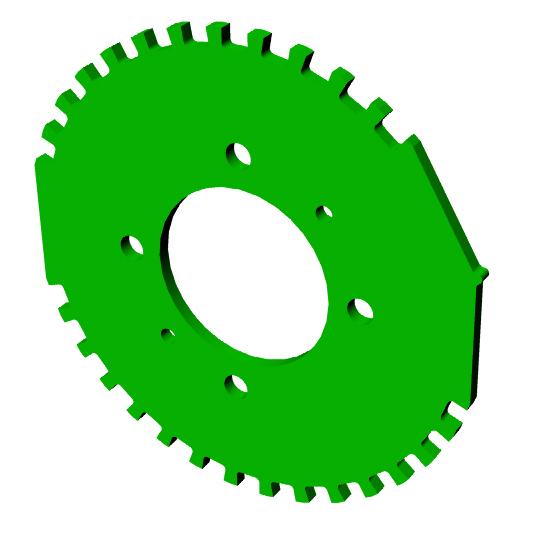

Chris Cosman  please rotate the small  pilot holes 90 degrees CCW.

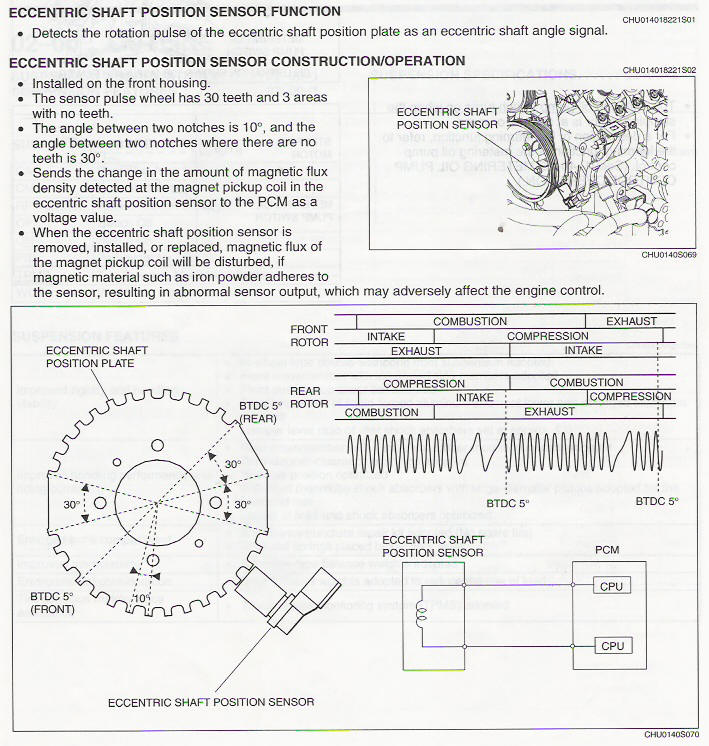

Make it look like the RX8 manual illustration shown below.

Paul Lamar
