>> >> > Mark's fuel injection system.
>> >> >
>> >> > I got the 3/8th Teflon I am waiting for the 3/8 spacer from Tom.
>> >> >
>> >> > Paul Lamar
>> >> That's a lot of butt splices.
>> >> I started with Mark's generous wiring harness :) It works.
>> >> It would be nice if we could get connectors for fuel injectors  >> and  >> coils
>> >> where the wire was not already potted into the connector. In other
>> >> words, connector shells and bare connector pins.
>> >> Paul Lamar
>> >>
>> >
>> > I have those for the LS-1 (D-580 version) coils and injectors  >> with the
>> > alignment tab in the center.  http://www.roblinphoto.com/shop/
>> >
>> > Bob W.
>> >
>> > -- > http://www.bob-white.com
>> > N93BD - Rotary Powered BD-4 (real soon)
>> > Prewired EC2 Cables - http://www.roblinphoto.com/shop/
>> >
>> > Good going Bob. Is this stuff on your web site? If so I will  >> mention
>> > that fact on my web site below. I also need pictures.
>> >
>> > Paul Lamar
>>
>
> Thanks Paul,  I would appreciate it.  (I see you got the pictures.)  I
> will be adding a custom made fuel injecton cable shortly.  I just
> received the 6-pin connectors for connecting to the aircraft cable.
>
> BTW,  The red seals shown are for 16 guage PVC wire.  I also have  > seals
> for smaller wire and will supply whatever is needed.  I still need to
> update the information on the web site.
>
>
>> Are those the rounded clips for the S5 injector?
>> B
>>
>

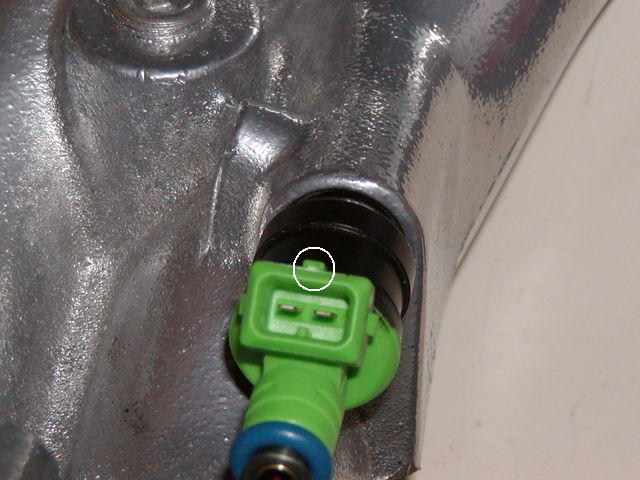

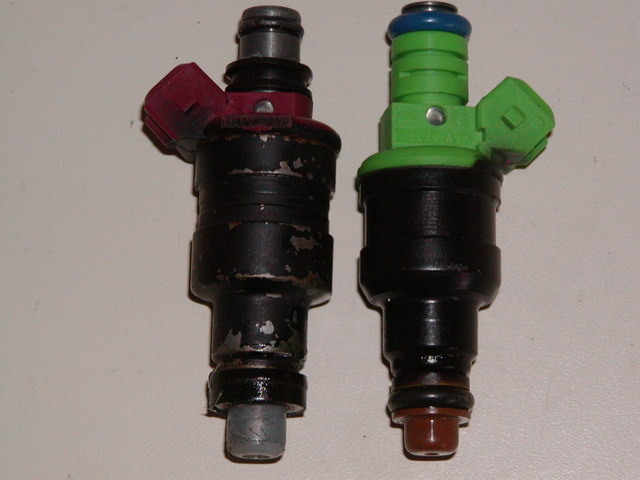

> I'm not sure what the S5 injector is.  These connectors fit the  > Ford 42
> lb injectors, and my Mazda injectors afer I shaved off the small
> orientation tab which was off to one side instead of centered. That
> doesn't effect the locking mechanism.  I heard somewhere that the tabs
> were to keep low impedence injectors and high impedence injectors from
> getting used incorrectly. I'm not sure that's true as both the Ford  > and
> Mazda injectors I have are high impedence.
>
> Bob W.
>
> http://www.bob-white.com
> N93BD - Rotary Powered BD-4 (real soon)
> Prewired EC2 Cables - http://www.roblinphoto.com/shop/
>


My bad, S5= Series 5 RX7 (1989-1991).

B

Brian Sieber
