The RX8 engine will require a modification to
the classic tangential muffler. The muffler will
be the same length as the 13B version but it will be moved back.
Particularly with the S beam under the front end housing.

The 13B  tangential muffler will fit a 13P peripheral exhaust
port engine fine even with the S beam moved down and back.
I'll do a 3D on that config shortly.

------------------------------------

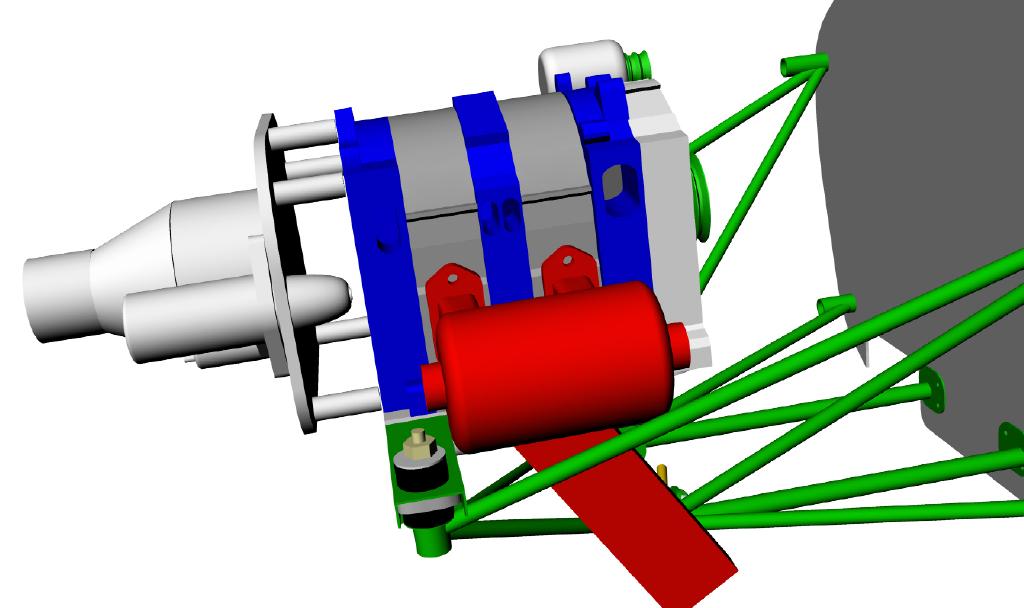

Here is the 13B version. Conventional and Jerry Hey style.

Paul Lamar ...No rotor no motor.
