Hi Paul.
    I'm looking for 1.85 planetary reduction drive do you know
    witch gear it is out of the transmission,whether it is the 3rd or 4th?
    Could you let me know .
    Thank you.
    Henry.


    It is the current same part as Tracy is using for the 2.85:1. I am
    not sure
    of the part number but I can guess it is this number 15 in
    this page from the Slauson Transmission parts catalog.

    Slauson Transmission Parts
    15407 S. Broadway St.
    Gardena, California 90248-2207
    U.S.A.
    Phone: (800) 421-5580
    Fax: (310) 768-8298
    Web: http://www.slauson.com/

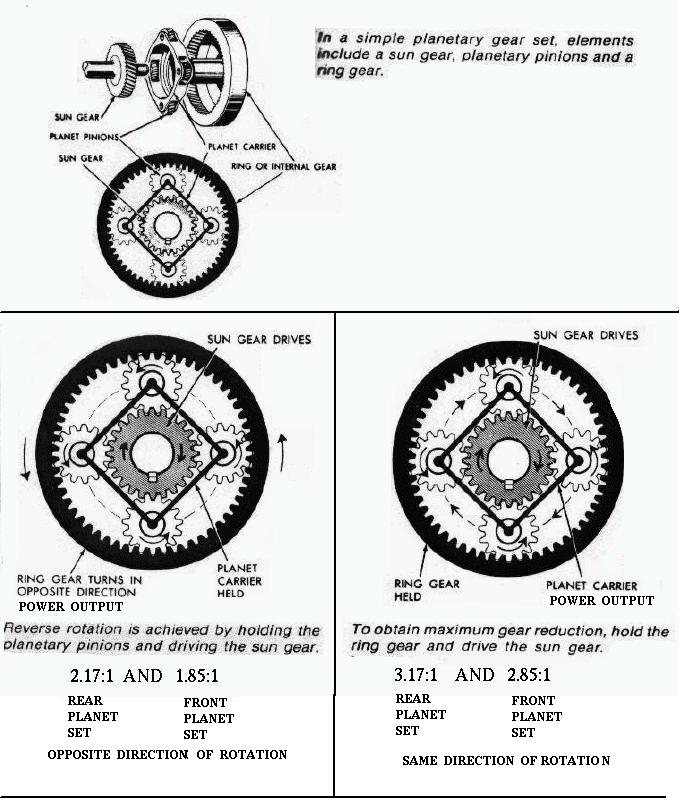

    It won't work as is. You will have to take power out of the
    ring gear and hold the planet carrier stationary. Consequently
    there will be some serous machining on these parts.

    Paul Lamar

Ya got it backwards, for a 2.85 you take the power from the planet
and hold the ring gear solid.
  Ken

--------------------------------

NO I don't :)

He does not want 2.85:1.  He wants 1.85:1 Ken.

Calculations for 1.85:1 are trivial and merely C/A


Paul Lamar ...No rotor no motor.
