>      Mazdatrix is building a three rotor P-port engine
>      with RX8 rotor. The slots have been opened
>      up for 3 mm Ianetti ceramic apex seals.
>      The carb was scavenged from a Porsche engine.
>      Should be around 450 HP at 9000 RPM or so
>      without too much trouble.
>
>      Paul Lamar ...No rotor no motor.
>
> Paul,
> Those inserts look great. Do you know if the small fillet at the outside
> edge of the housing is epoxy or did they tig the spigots? Or perhaps I'm
> not seeing the picture correctly.
> Bill Jepson
>
>
> BTW Francois do you have plans to cast a 3 rotor wide
> intermediate housing. Mazda is sold out of them. Guru racing
> is making three rotor E-shafts but there is no source currently
> for the cast iron wide intermediate 3 rotor housing.
>
> Seems to me there is a much bigger market demand in auto racing
> for that casting. You may wind up with the only source of 3 rotor
> engines in the world :)
>
> Paul Lamar ...No rotor no motor.
>
> Yes Paul,
>
> We are going to make our own cast-iron side- and intermediate housings,
> including the intermediate bearing housing for the 3-rotor.  The casting
> molds are in the making.  However, the intake ports will be a

proprietary

> design, compatible to both normally aspirated and turbocharged
> versions.  It
> will make them non-obvious to retrofit on 20B car engines.
>
> I send you in attachment a picture of our G-300 prototype.  Others can

be

> found on our website.
>
> See you at OSH.
>
> Francois
>
> Wow that 3 rotor is going to make a BIG SPLASH at OSH.
> Beautiful work Francois. You are a huge credit
> to the rotary movement. You are doing a fine job.
>
> Glad to hear that. The next step is a four rotor:)
>
> Yes I know. I have some pictures of your end and center
> housings iron castings for the two rotor.
>
> Most of the racing guys build their own intake manifolds anyway.
> Also many of them convert the engines to P-ports so
> the side intakes are irrelevant.
>
> http://www.mistral-engines.com/
>
> Paul Lamar ...No rotor no motor.

paul,

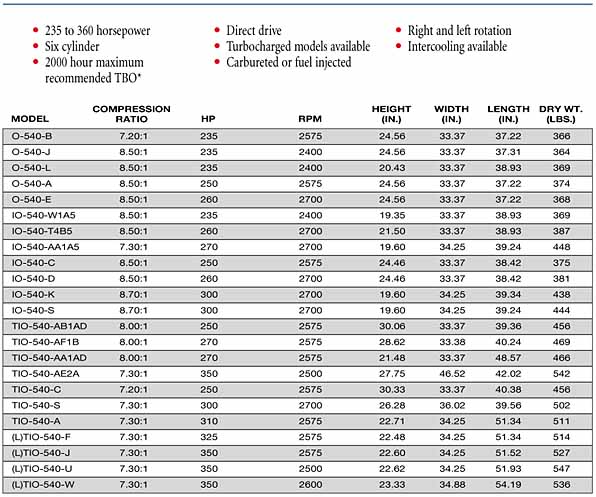

how much does that beast weigh and how long is it?
Steve

Francois, what does your 3 rotor weigh?

My guess (less the cooling) rads around 350 to 400 pounds
The bare 3 rotor less the gear box  is 260. I think
Francois's constant speed prop gear box is under 40 pounds.
The starter weighs about 7 pounds. The alternator about 8
pounds. Then you have the mag intake manifold and some
sort of exhaust.


Paul Lamar ...No rotor no motor.

The G-300 as it is now weighs about 360 lbs.  However, we have to change to
a bigger backplate to accommodate the wider type 2 dynafocal mounts.  The
new backplate is not ready yet and will weigh a little bit extra.  We are
expecting a final weight around 375 lbs (without cooling installation).

Francois Badoux
