#G3000-45470 Water Pump W/ Housing
ASCO/Aisin (OEM) $71.51
Vehicle:
1992 Toyota Corolla 4Dr Sedan
Fits Engine - Chassis:
4AFE ― AE92
Description: W/ Housing
Year: 8/1989-9/1992
-------------------------------------------
The Corrola is a small engine of about 100 HP.
You need about 30 gallons a minute as I recall at
around 6000 RPM. Don't forget to put back pressure
on the pump when you are testing it.
Paul Lamar
Hi Paul and Doug,
had a long discussion with Don Dunbar about the data we collected
with the Corolla 4A FE pump.

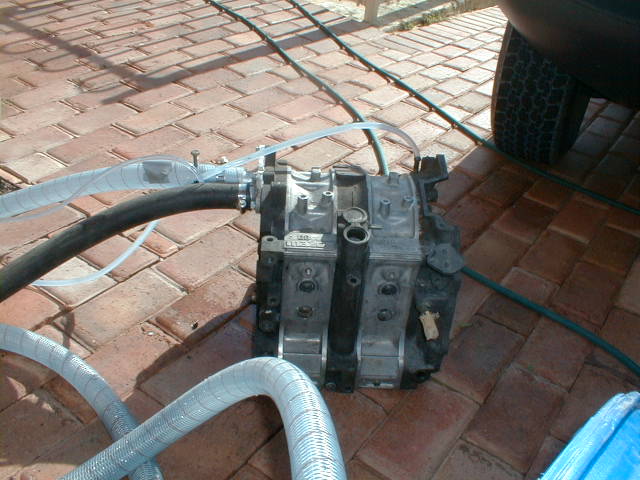

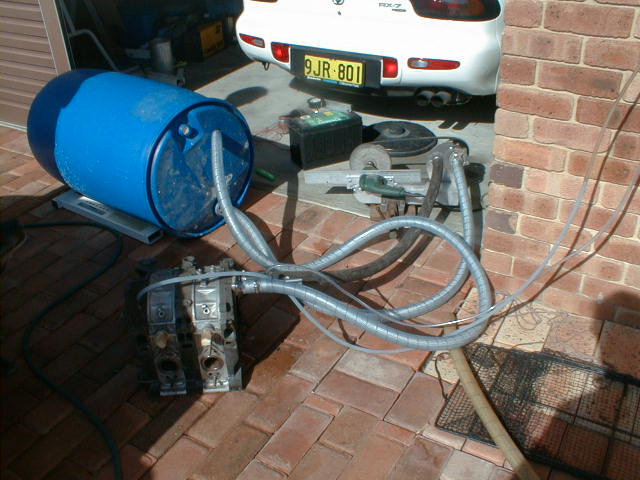

The test data was : pump driven by electric motor at 3000 rpm,
pumping thru the 13b block.
Results: Output of just over 100 liters per minute
[26 gallons per minute] maintaining head
pressure of 1.5 meters [60 inches of water or 2 psi].
[12 inches of water is about .45 psi]

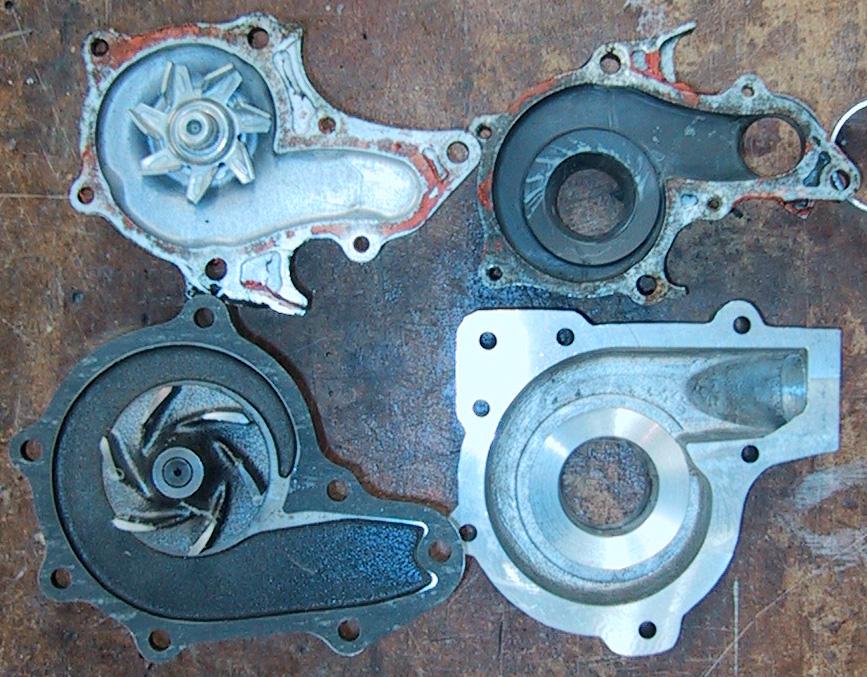

The pump pictured in Autoparts Warehouse looks identical. I said
previously, in error, that it was from a Supra, it may well be fitted
to Supra engines, but it is OEM on Corolla engines. At present, I just
happen to be replacing the head gasket on my son's 4A FE Corrola and it
is that pump for sure.
Hope this gives you the info you need,
BR, Dave McC
2 psi is not much back pressure Dave.
http://www.onlineconversion.com/pressure.htm
See Bill Schertz charts for the stock Mazda pump.
Paul Lamar
Dave,
Thanks for your info. and time on this. I would have to agree with Paul
that 2 psi or 1.5meters of head is very very small. Perhaps used in a
Corrola the pump's performance is better. I wonder what type of radiator
Don had hooked up in his test.
DougFir
I don't think Don hooked up a rad.
Paul Lamar ...No rotor no motor.
