Paul

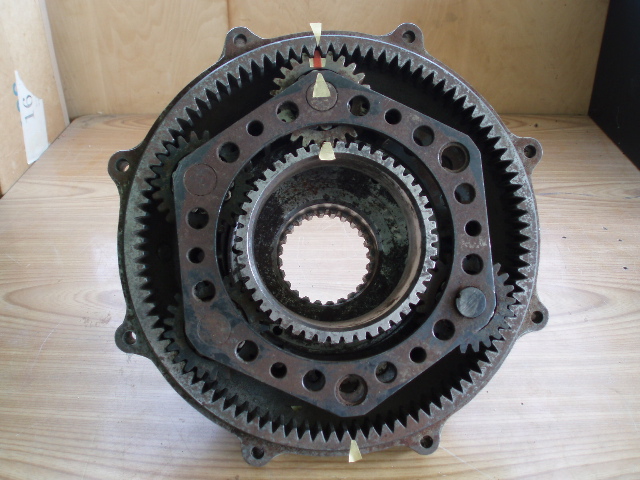

The planet gear position in Sun-180 is hard to see but it is there peeking through a
hole in the planetary.   I removed several gear to send them out for
testing.

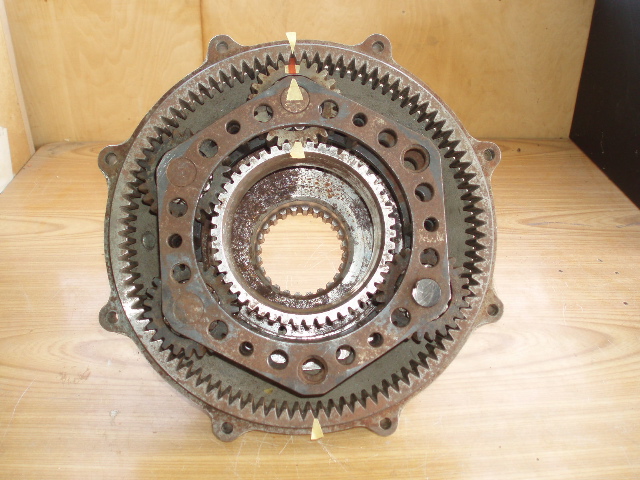

The last picture shows how much the sun gear moves in one planetary
revolution.  About 268 degrees.  This is a good thing as it allows more even
wear.

Cheers

Doug

PS These pictures were loaded into Adobe Photoshop and saved as JPEG files.
