Let me know if you need more dimensions Jerry.
--
Paul Lamar ...No rotor no motor.

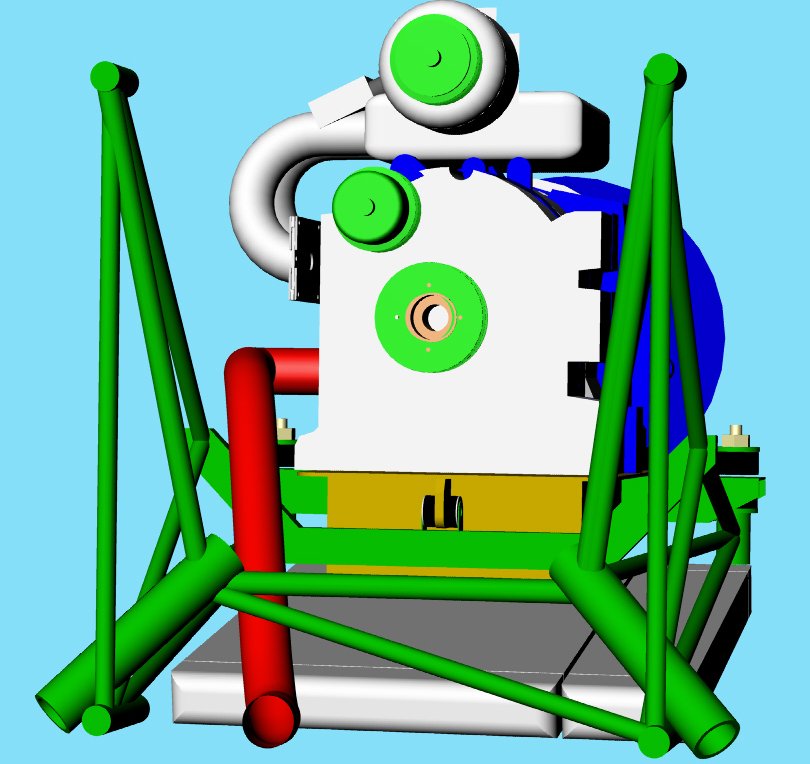

Paul, can I have a view from the firewall looking toward the prop.
In particular I want to see the rear beam.  Thanks,  Jerry

Here it is.
I am going to change it. I am not happy with it yet.
