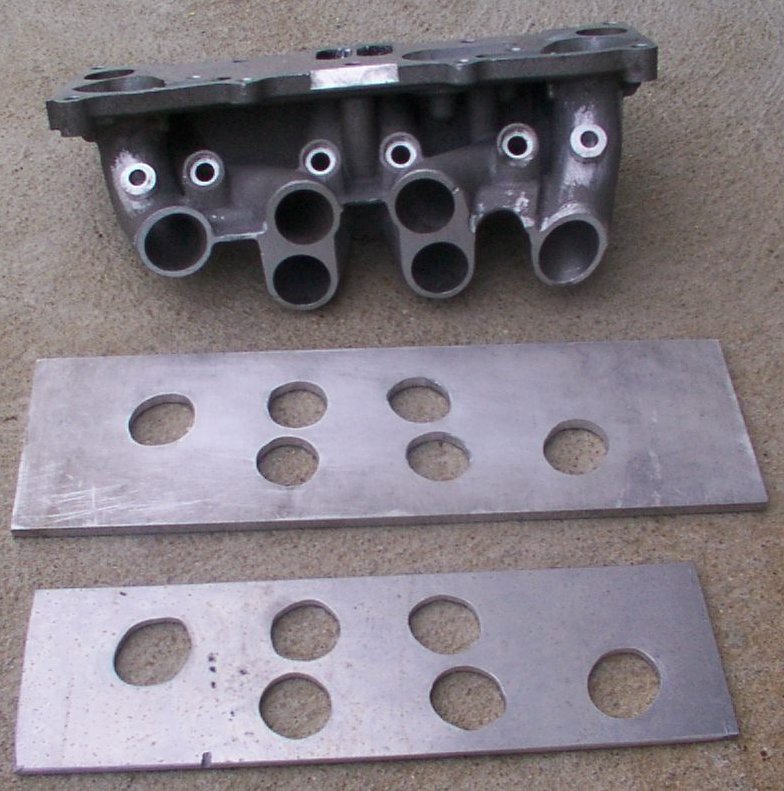

This is my  attempt at a six opening slide throttle mounted on the lower
half of the intake manifold. I have some .032" teflon sheets that I will
mount between the base and slide. I will have the slide base tack welded
to the intake manifold and either alumabraze the rest or seal it with JB
weld. I am mounting a boss on each of the outboard intake tubes for
extra low pressure fuel jets distribution. If the dribble system doesn't
work out I can go back to the EFI.

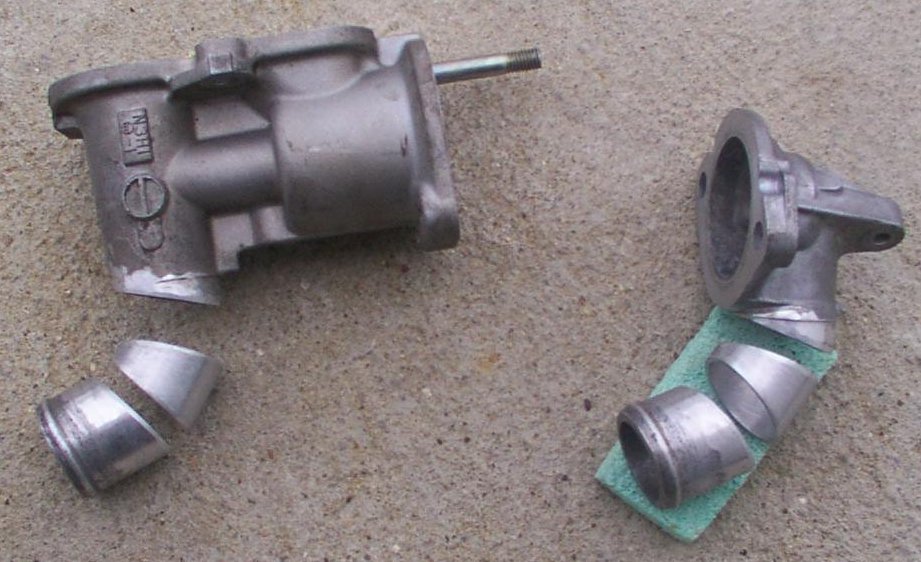

   I cut the water pump hose barbs off at a 20% angle and made 15%
fillet pieces to angle the inlet and outlets down enough to clear the
inside of the engine mount and cowling.  Karibian
