Paul, please indicate the vertical distance from the upper bushing
centers to the thrust line. Thanks, Jerry

On this set of Van's plans it is 4.75 inches. Perhaps as you
contend the dynafocal mount is not symmetrical. I did not think
it was as much as .75 inches off.

-- Paul Lamar ...No rotor no motor.

Paul,
the mount shown in the second drawing is a Dynafocal, rather one of
the straight mounts.
Bill Jepson

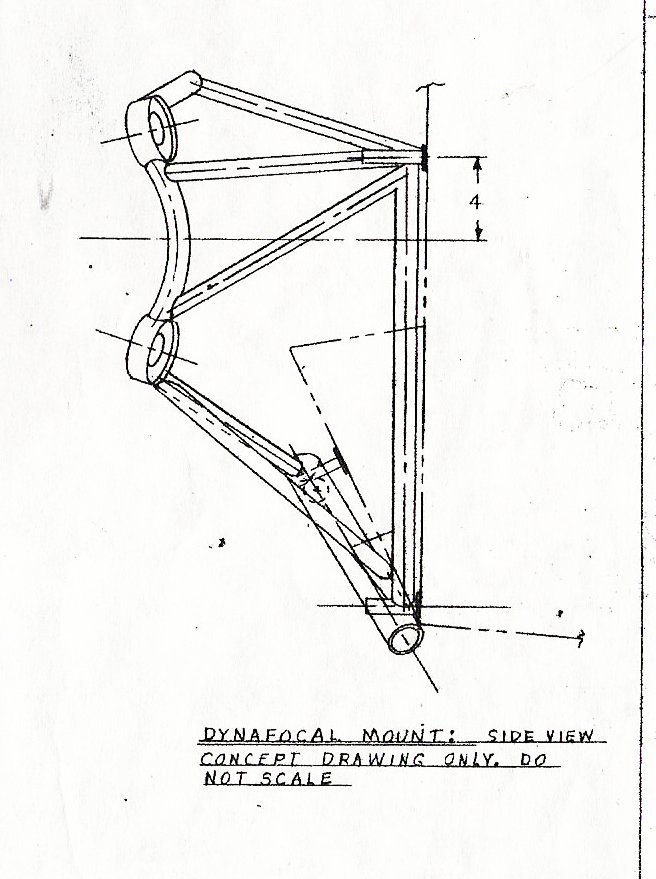

Yes I know. I have both. The dynafocal says 4 inches and the stright
mount says 4.75"

Paul Lamar ...No rotor no motor.
