Hi Paul,
  My name is Tudor Miron and live in Moscow, Russia.
 First I want to thank you for great knowledge shared on your web site.

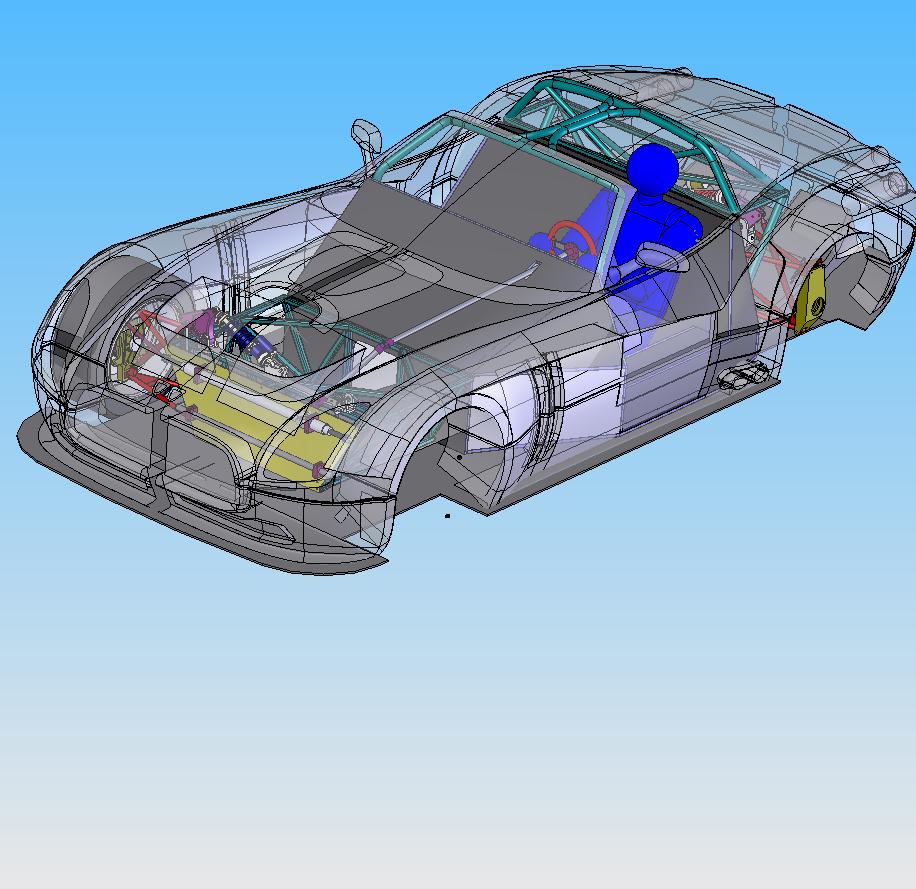

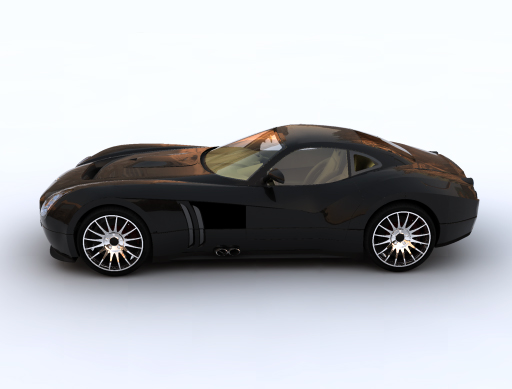

I'm designing a rotary powered sports car (images attached). I'm still in
3D phase of design. Currently I'm not in a position (working as tech.
director in F3 team) when I can start purchasing components so I can not
make a 3D model of rotary engine myself yet. Still it will be very
beneficiary to have a reasonably accurate (external dimensions) 3D model
of engine. That would help a great deal in designing engine bay and cooling,
exhaust,forced induction, intake components packaging.
  3D model found on your web site is the only one I saw after endless web
search. I know that I'm asking way to much but if you could provide me
with your model it will be highly appreciated.

  Thank You
  Ted

??????? ?? ????????.  ? ? moscow. ????? ?????.

Very nice design Ted. I would like to see just the chassis part of the 3D.
Go to the web site.http://www.rotaryeng.net

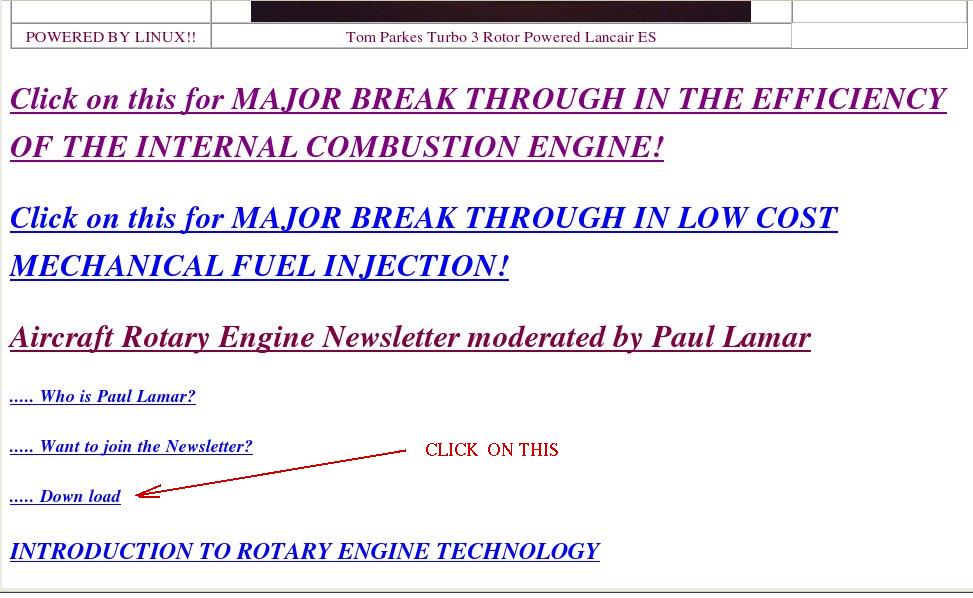

On the front page scroll down to "... Down Load".

Click on Down Load and save to disk.
It is a zip file with a lot of Rhino 3D engine models.

Unzip of course.

Some of the files are in IGES format that will import directly into
Solid Works.


BTW I understand that Vaz stopped making rotaries. Is that true?
