Paul,

I missed the post that started all of this. Could you resend it to me?
I'm looking to understand the mechanical layout of this EFI and the
theory behind it.

Thanks
Ken Bauman




-------- Original Message --------
Subject: Reverse the direction the slide throttle travels
Date: Wed, 08 Nov 2006 21:27:33 -0800
From: Rotary Engine <rotaryeng@earthlink.net>
To: AA-me <rotaryeng@earthlink.net>


> Is it possible to reverse the direction the slide throttle travels
> with the use of a bell crank?  Jerry


Jerry,
If you reverse the slide throttle you can make the housing 2" shorter.
IMHO It is much better to provide attachment of the throttle cable
directly to the slide throttle compared to building some extra bracket.
As you push the throttle control forward the throttle plate
actually moves forward opening the intake.
Take a look at the AeroCarb to get the picture.
http://www.aeroconversions.com/carb_index.html
I have one of these on one of my planes and it works great.
They even make a ninety degree bellcrank for some installations
which also is to be mounted directly to the throttle body.  I
modified the bellcarnk to allow 85mm (3 3/8") of throttle cable
travel for the 29mm of throttle plate travel.       jm2c

Terry Adams


This is a VERY simple system. No computer, no sensors, no
floats, no venturi, no fuel injectors, no nothing. Just very
low pressure fuel. The fuel orifice area simply increases with
the air passage area increase. Bigger fuel hole bigger air hole.
There is another simple series valve that controls leaning.

I think I have figured out how to do this with our slide
throttle. No fuel injectors required. In fact other than
a bit of plumbing there are no additional parts.
Patent applied for :)


Paul Lamar

-------- Original Message --------
Subject: Reverse the direction the slide throttle travels
Date: Wed, 08 Nov 2006 23:47:23 -0800
From: Rotary Engine <rotaryeng@earthlink.net>
To: AA-me <rotaryeng@earthlink.net>



     This is a VERY simple system. No computer, no sensors, no
     floats, no venturi, no fuel injectors, no nothing. Just very
     low pressure fuel. The fuel orifice area simply increases with
     the air passage area increase. Bigger fuel hole bigger air hole.
     There is another simple series valve that controls leaning.
     Paul Lamar

snips ................

Times up.

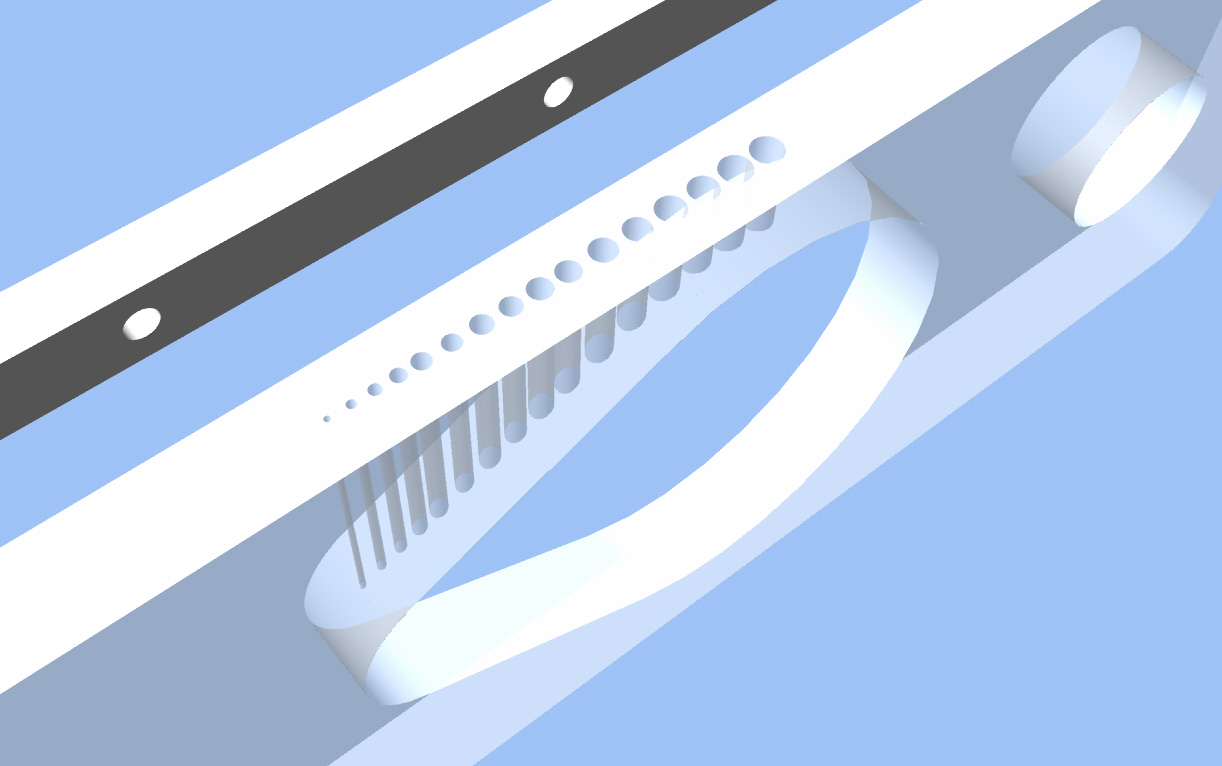

Here it is. Super simple. A series of progressively larger

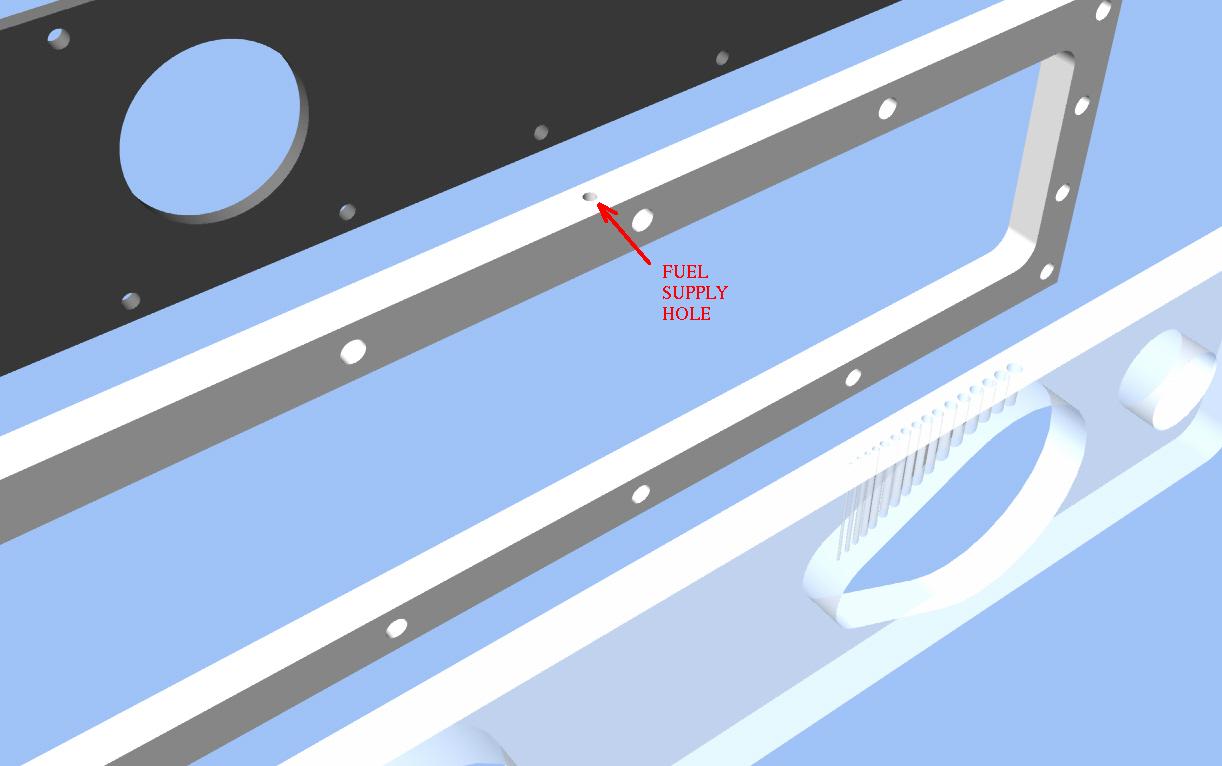

feed holes in the Teflon slide communicating a with a fixed
larger fuel hole in the aluminum spacer.

Patent applied for :)
