>>> Hi,
>>>
>>>
>>> Some questions:
>>>
>>> Any advantage to using an under drive pulley in an aircraft
>>> installation?  Would it help with the higher constant RPM's I will be
>>> running?
>>>
>>> I have to move my alternator on my Renesis engine to the side, rather
>>> than have it on top as it comes, when I do so I will have an
>>> interference problem with the pulley belt and the crank angle sensor.
>>> Can I use washers or a plate to move all the pulleys out to eliminate
>>> the problem? Would there be any concerns doing this?
>>>
>>> Does anyone know of a good oil filter relocation kit for the Renesis
>>> engine?
>>>
>>>
>>> Thanks,
>>> K11
>>>
>>> Paul Kvernplassen
>>> Building a GlaStar in Alaska
>>> Paul

Paul also try to fit a idler pulley when you move the
alternator. That will give you more wrap and you won't need
to space out the pulleys.

Paul Lamar ...No rotor no motor.

Paul, an idler pulley sounds like a good idea....  do you have a
suggestion for where in the loop it would be best?  Also for Ian.... I
have not seen side mounts for the Renesis.  I have only seen it for the
RX-7.  I don't know if it would be easier to modify one of those or try
and build one myself.

Thanks for all the suggestions,
K11

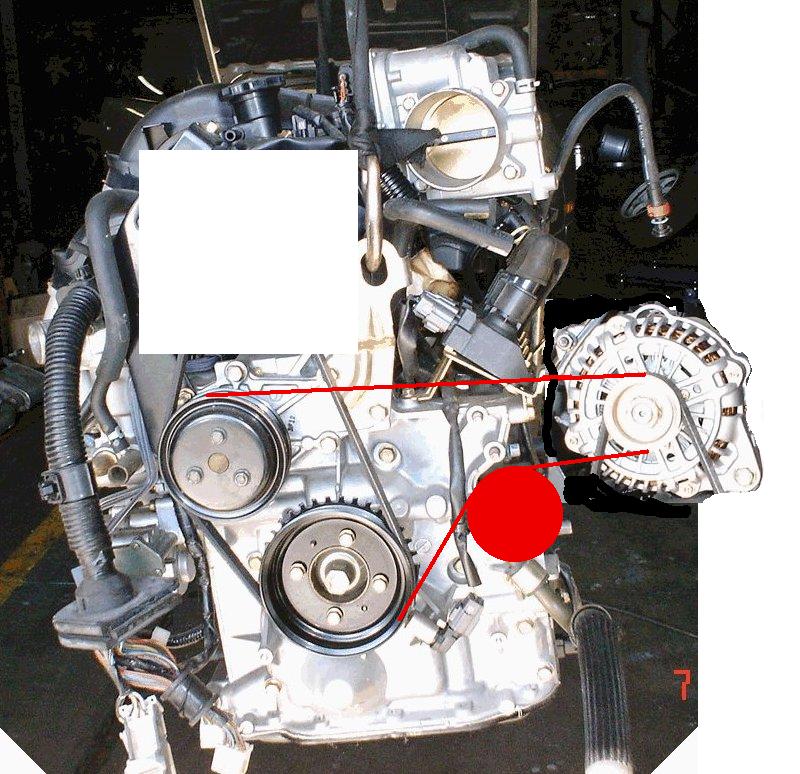

Right about here.
Side mounts are easy to make. Make out of 4130 sheet
as aluminum tends to fatigue and crack. This one is made
from angle iron.
The rear pivot on the alt has near zero load so any small
bracket or clip will work fine. The load is on the belt end.
