I am just about ready to put the engine mount together, so I need Barry
Mounts. I thought I had save an email that specified the size, etc. but
I can't find it. Must have been lost last Jan when the disk crashed.

What is the right size Barry mount for the S-beam? And the rear support
using the elastomer filled rod ends?

Doc Custer
Retired Software Engineer and sometime Audiologist

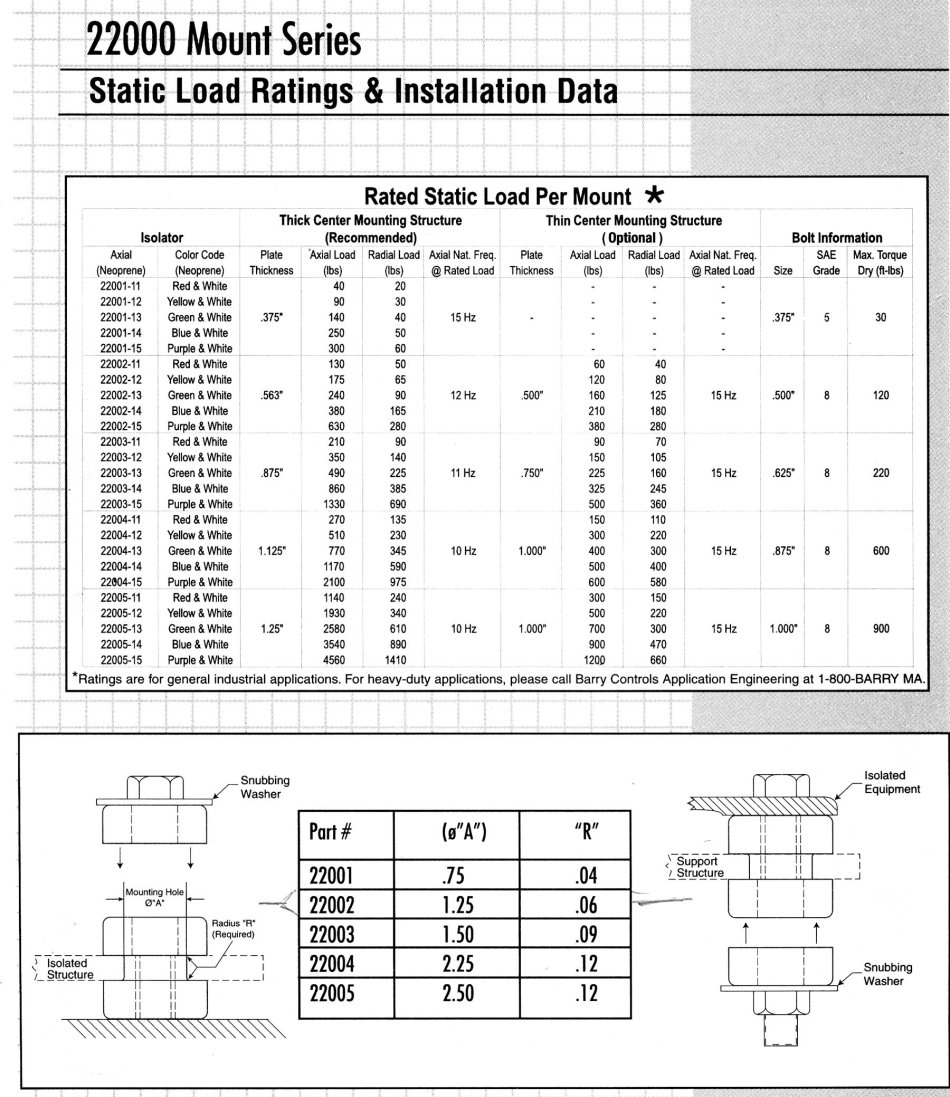

The front mounts are 22002 design. See the attached chart.

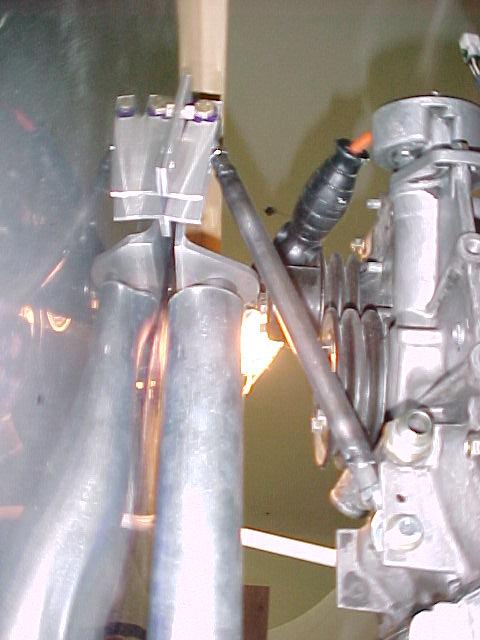

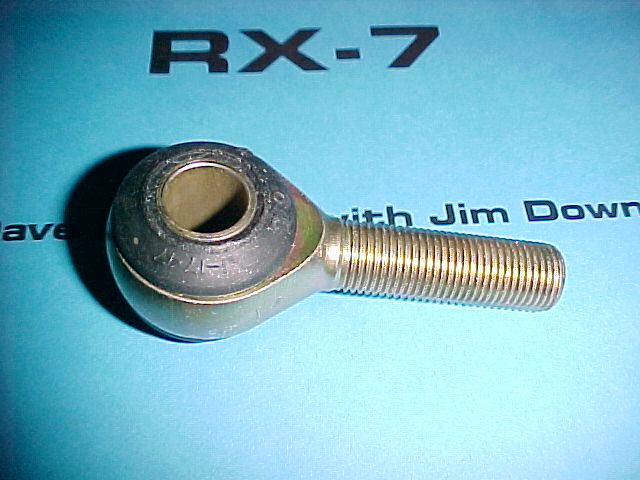

The rear rubber rod ends are the 1/2-20 male. One right hand
and one left hand for simple adjustment down thrust adjustment.


Paul Lamar ...No rotor no motor.
