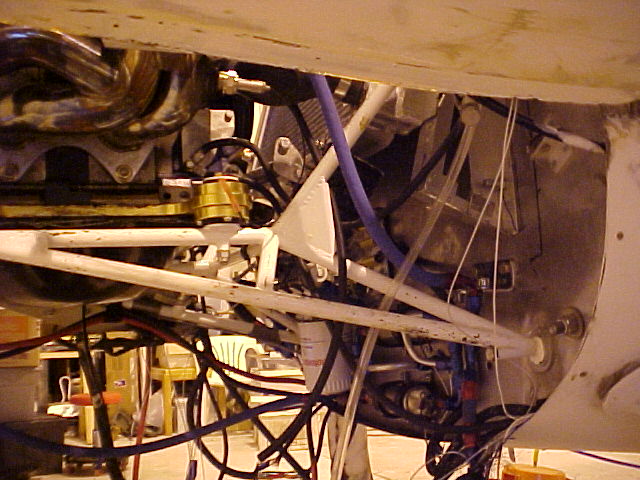

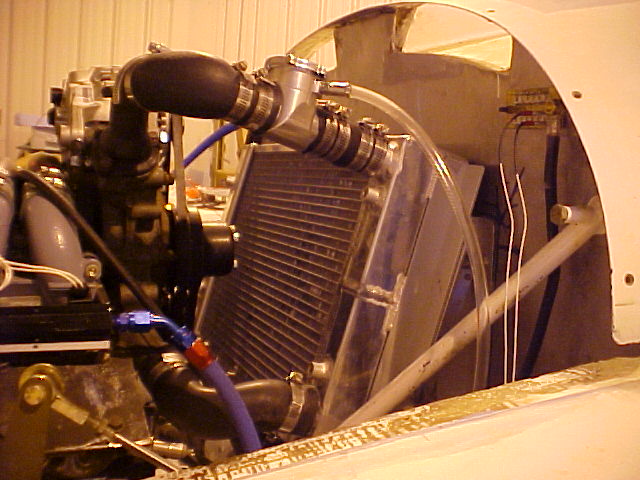

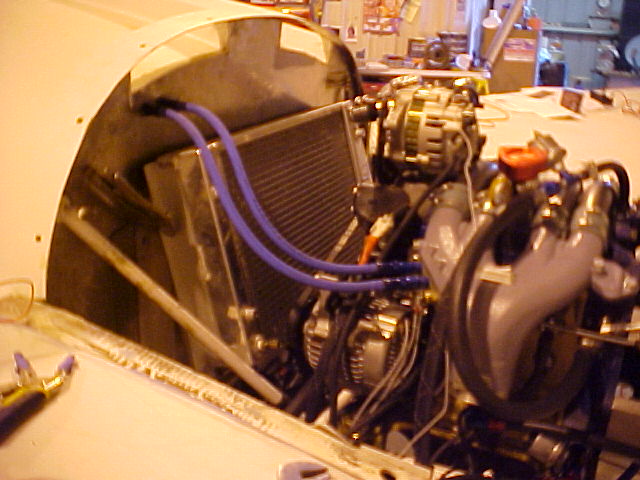

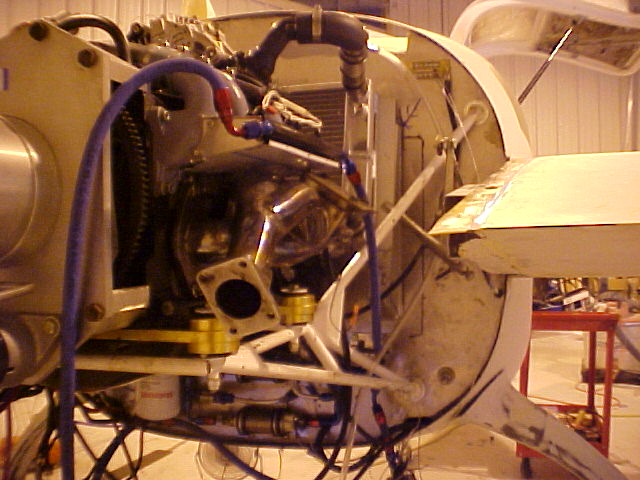

Here are some pix of my radiator/heat exchanger installation.  You will note

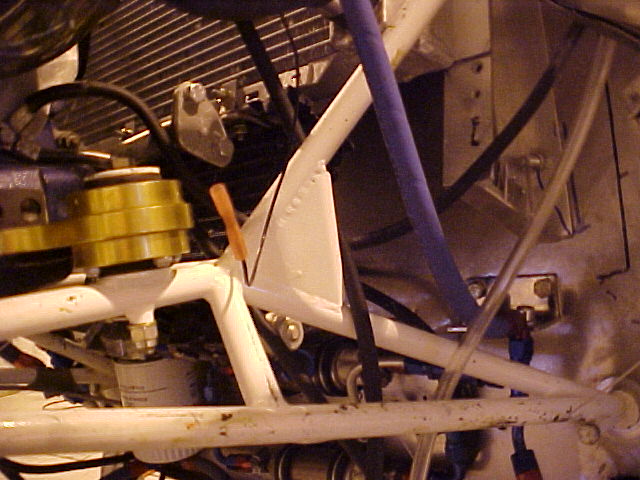

the bracket that the radiator is currently "vise-gripped" to.  It is
temporary and too long.  As it is, the lower portion of the bracket is in
the bath of the air ducting I will be making out of fiberglass.

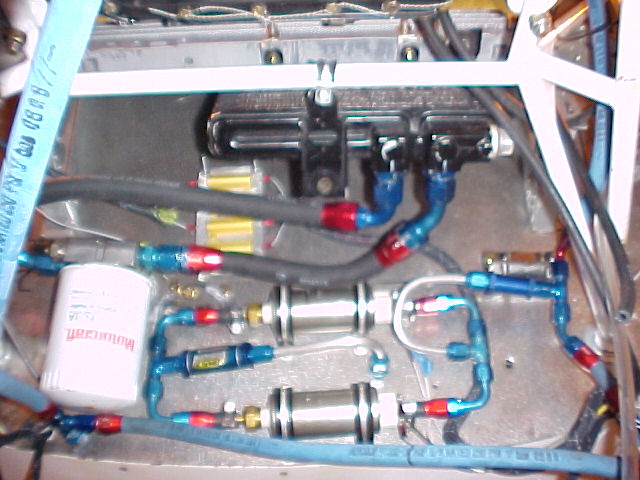

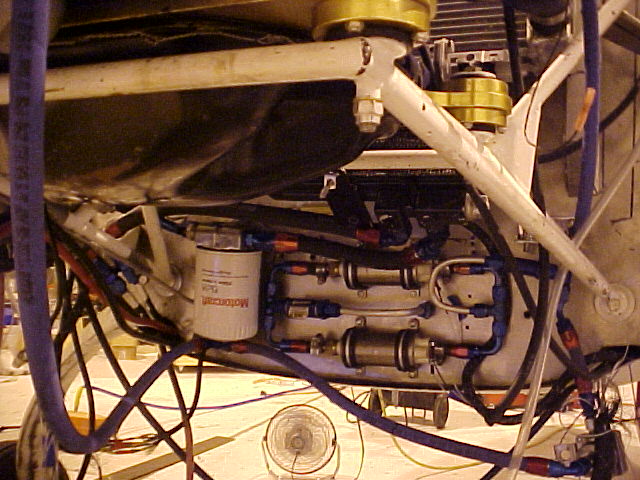

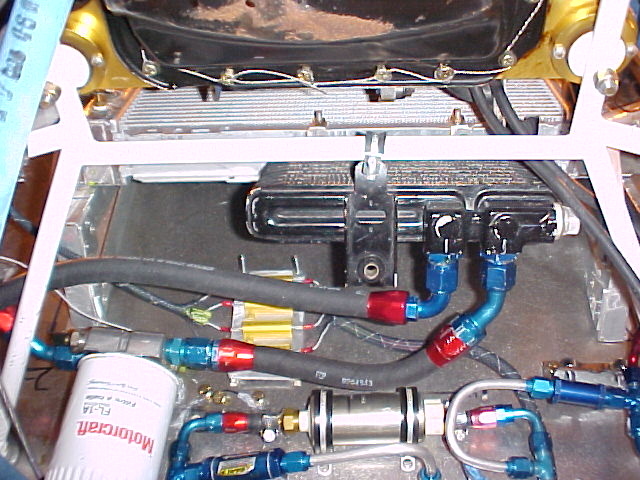

It may be difficult to tell, but the second oil cooler (the first is in the
nose, per plans, is located just below the radiator.  I plan to form from
fiberglass a chamber that the air from the armpit scoops goes to and will
direct the air to the radiator as well as the oil cooler placed below.  You
can recognize the oil cooler as the black box with pretty red and blue
fittings coming out into black hose.

All the best,

Chris
