Subject: RV 7A engine mount
From: Rotary Engine
Date: 7/7/2007, 11:10 AM
To: AARotary Engine

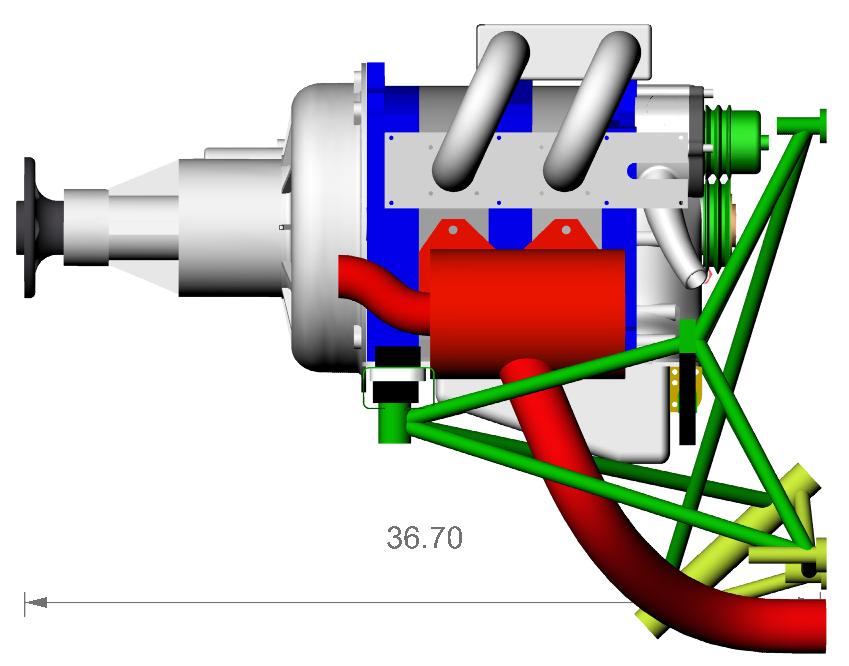

Paul, here is the last bit of data.  The prop flange to firewall is
37.5 inches.    For my purposes, can you draw the engine mount
without the thrust off sets?   Thanks,  Jerry

OK
--
-----------------------------------------------------

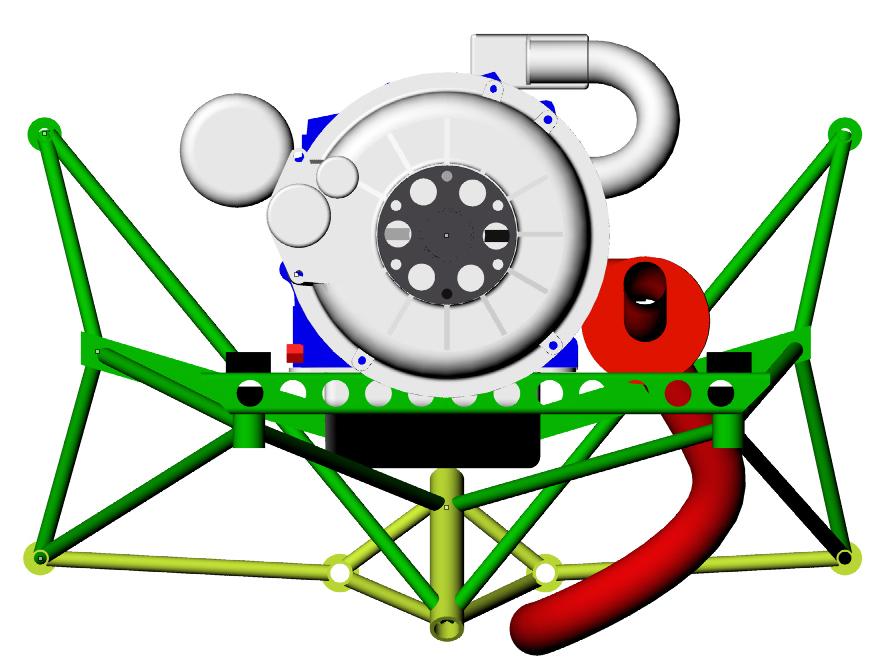

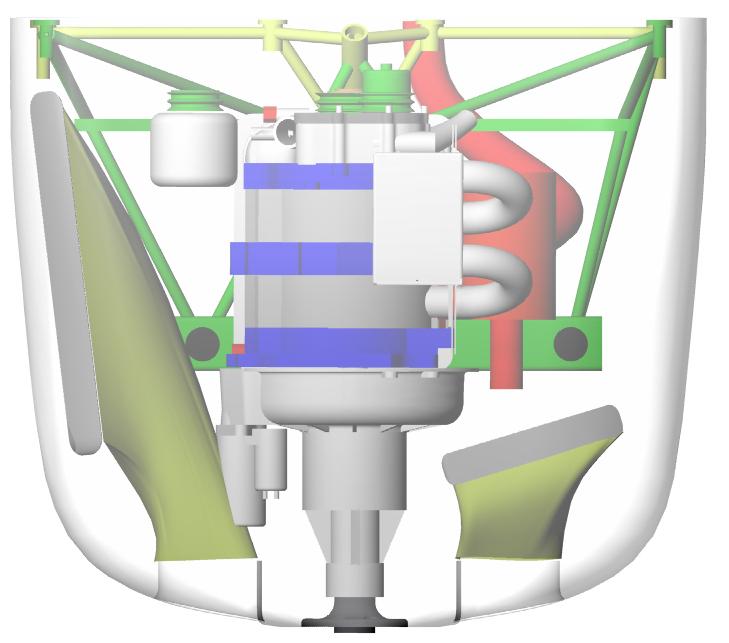

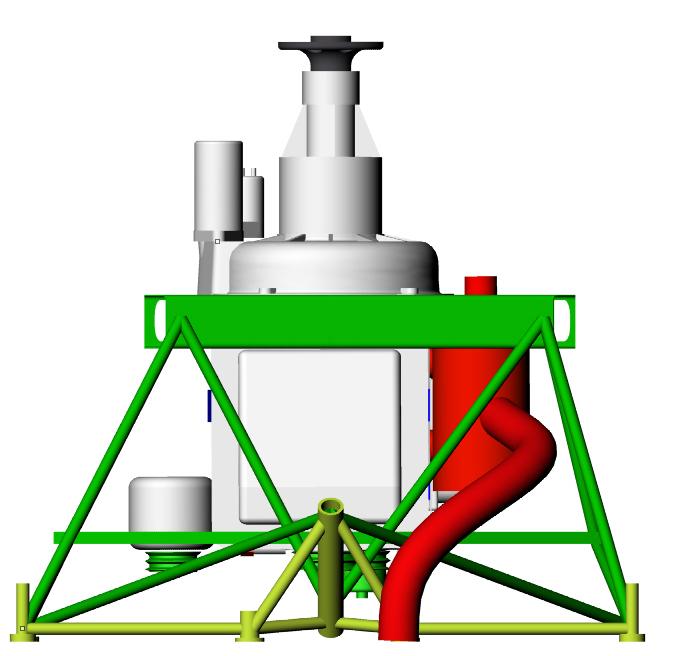

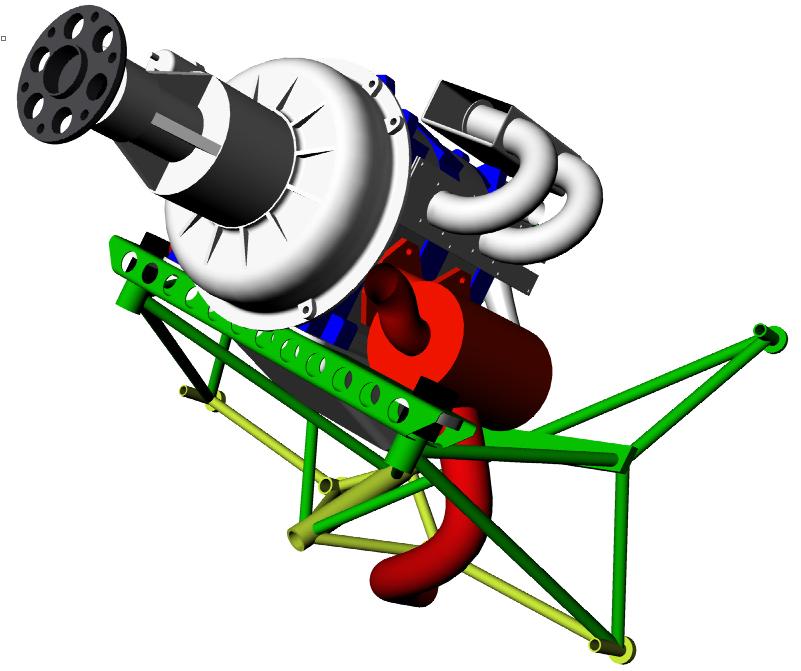

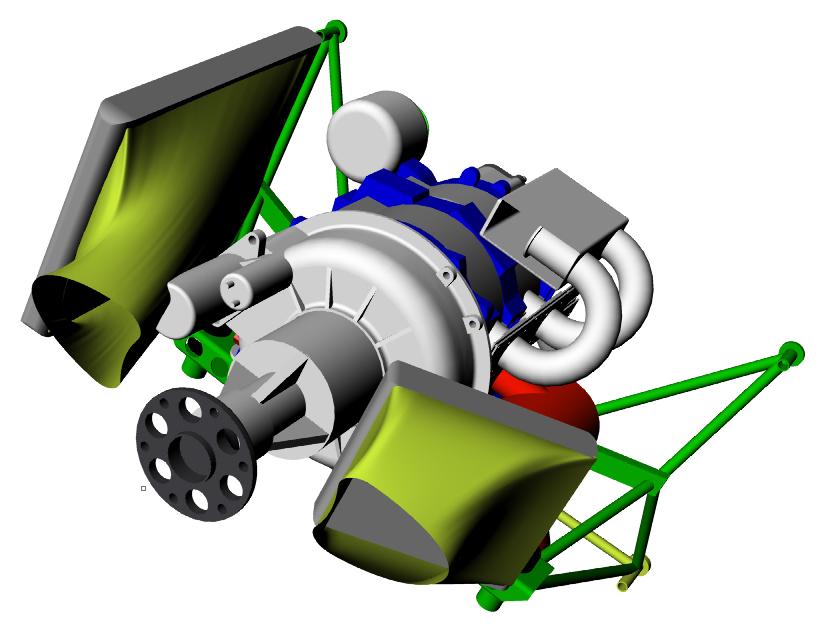

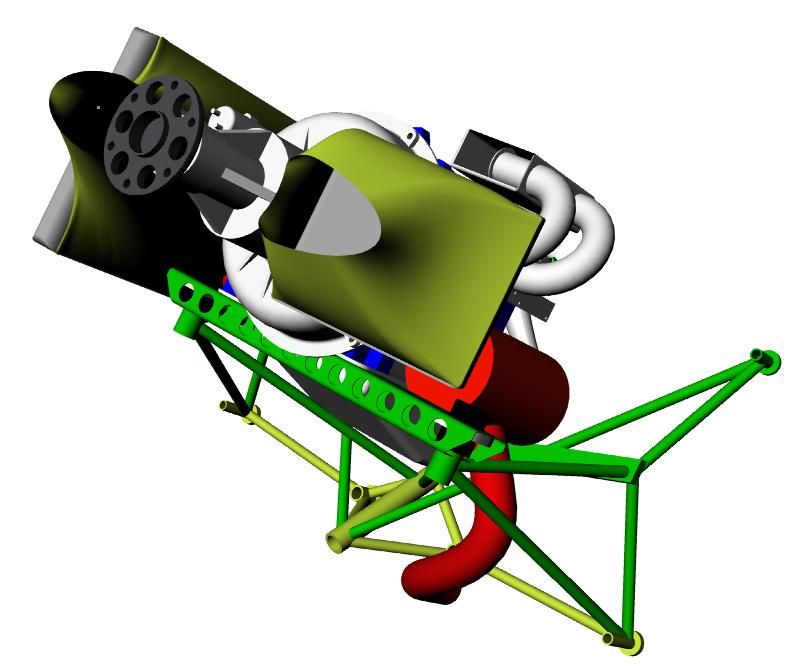

Here it is. Asymmetrical for those that would like to put the
rad on the side.

--
Paul Lamar ...No rotor no motor.
