Paul, here is the last bit of data.  The prop flange to firewall is
37.5 inches.    For my purposes, can you draw the engine mount
without the thrust off sets?   Thanks,  Jerry

OK
--
-----------------------------------------------------

Here it is. Asymmetrical for those that would like to put the
rad on the side.

--
Paul Lamar ...No rotor no motor.

Here are the dimensions Jerry.

Paul Lamar ...No rotor no motor.

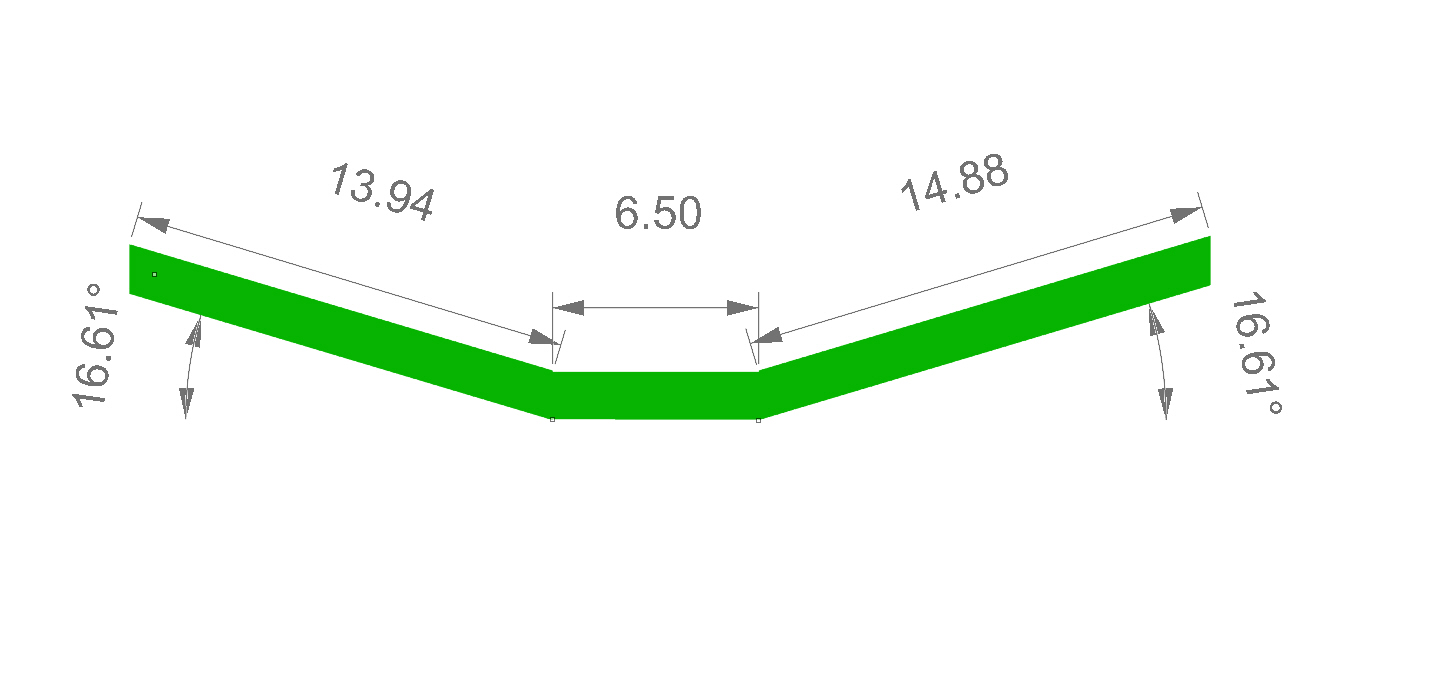

Thanks,  what is the angle of the rear beam outer legs?   Jerry

Here it is. For a bit of extra strength with near zero increase
in weight it won't hurt to put a short 1/2 inch dia. tube straight down to the
nose gear socket.
