Subject: Lemans engine torque curves
From: Rotary Engine
Date: 7/19/2007, 6:12 AM
To: AARotary Engine

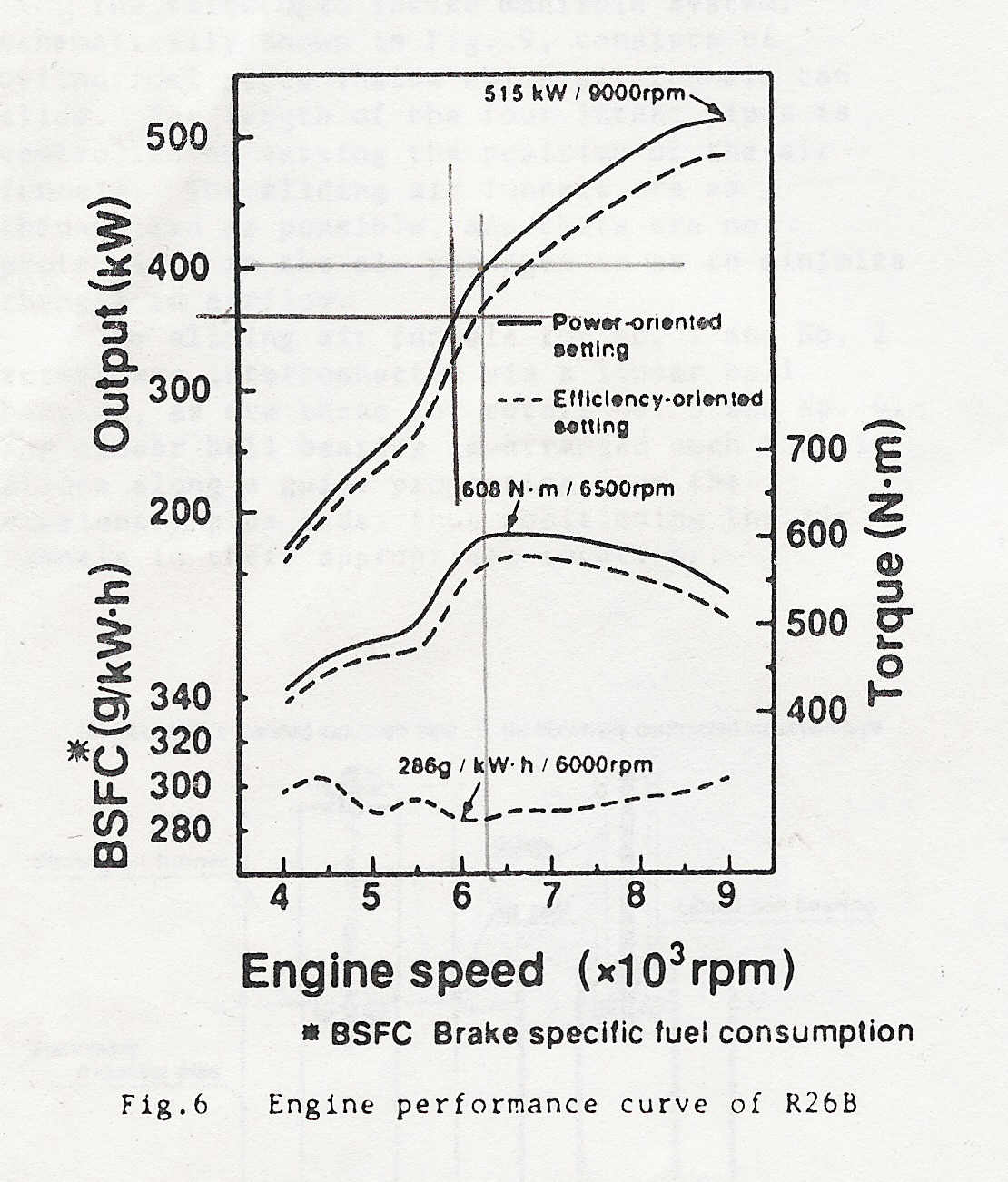

I simplified and translated the Lemans engine p-port torque
curves to a two rotor and made them easier to understand.

Here they are. To get the HP at any RPM and runner
length the formula is HP = Torque X RPM / 5252
Pick a curve and plot the HP for each RPM of interest.

Paul Lamar ...No rotor no motor.
